CD1607-B140LF
DIODE SCHOTTKY 40V 1A 2MINISMAManufacturer: Bourns Inc.
Categories: Single Diodes
Quality Control: Learn More

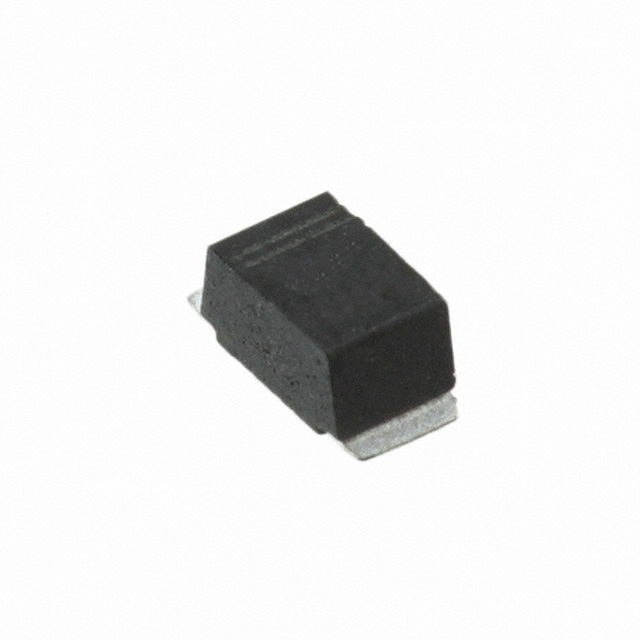

Bourns Inc. CD1607-B140LF is a Schottky diode designed for surface mount applications. This component features a maximum DC reverse voltage of 40V and a forward voltage of 500mV at 1A. It offers an average rectified forward current of 1A and a reverse leakage of 500 µA at its maximum reverse voltage. The diode exhibits a capacitance of 100pF at 4V and 1MHz, and its technology is Schottky, indicating fast switching characteristics.
The CD1607-B140LF is packaged in a 2-Mini-SMA (SOD-123T) form factor, supplied on tape and reel. Its operating junction temperature ranges from -55°C to 125°C. This device is suitable for power supply circuits, voltage clamping, and general-purpose rectification in various electronic systems, including consumer electronics and telecommunications equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOD-123T |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | 100pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | 2-Mini-SMA |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 1 A |
| Current - Reverse Leakage @ Vr | 500 µA @ 40 V |
