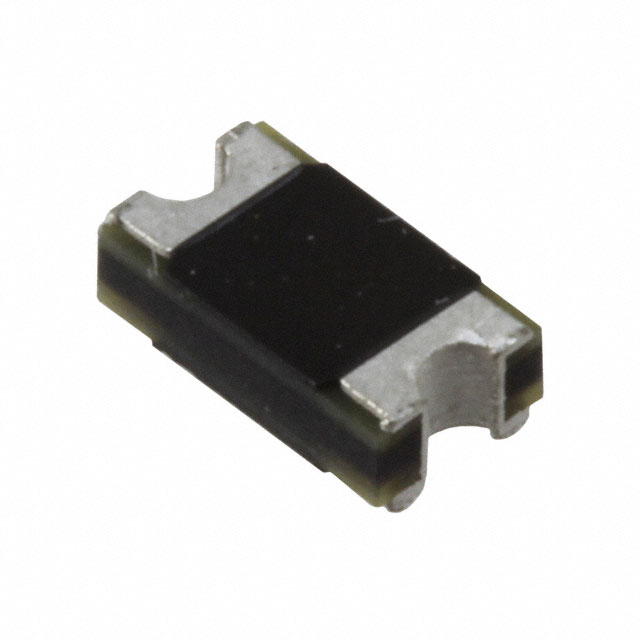

CD1408-FF11000
DIODE GEN PURP 1KV 1A 1408Manufacturer: Bourns Inc.
Categories: Single Diodes
Quality Control: Learn More
Diode 1000 V 1A Surface Mount 1408
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | Chip, Concave Terminals |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 75 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 10pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | 1408 |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 1000 V |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 1000 V |
