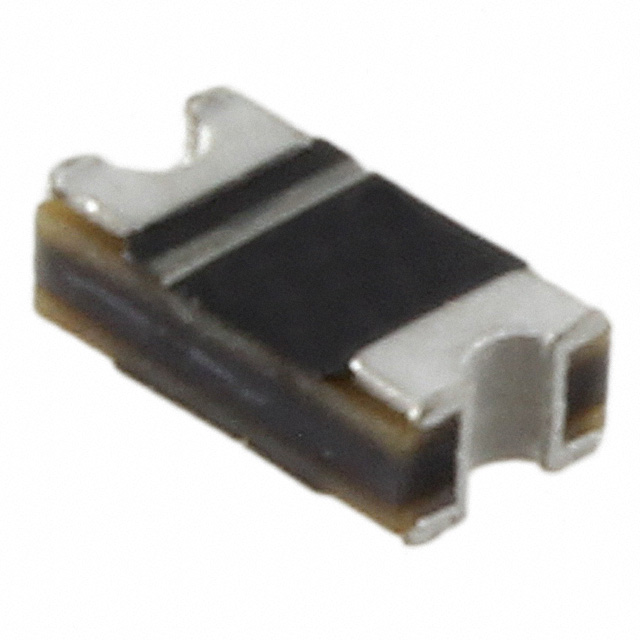

CD1206-B220
DIODE SCHOTTKY 20V 2A 1206Manufacturer: Bourns Inc.
Categories: Single Diodes
Quality Control: Learn More
Diode 20 V 2A Surface Mount 1206
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | Chip, Concave Terminals |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 2A |
| Supplier Device Package | 1206 |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 2 A |
| Current - Reverse Leakage @ Vr | 500 µA @ 20 V |
Request a Quote
