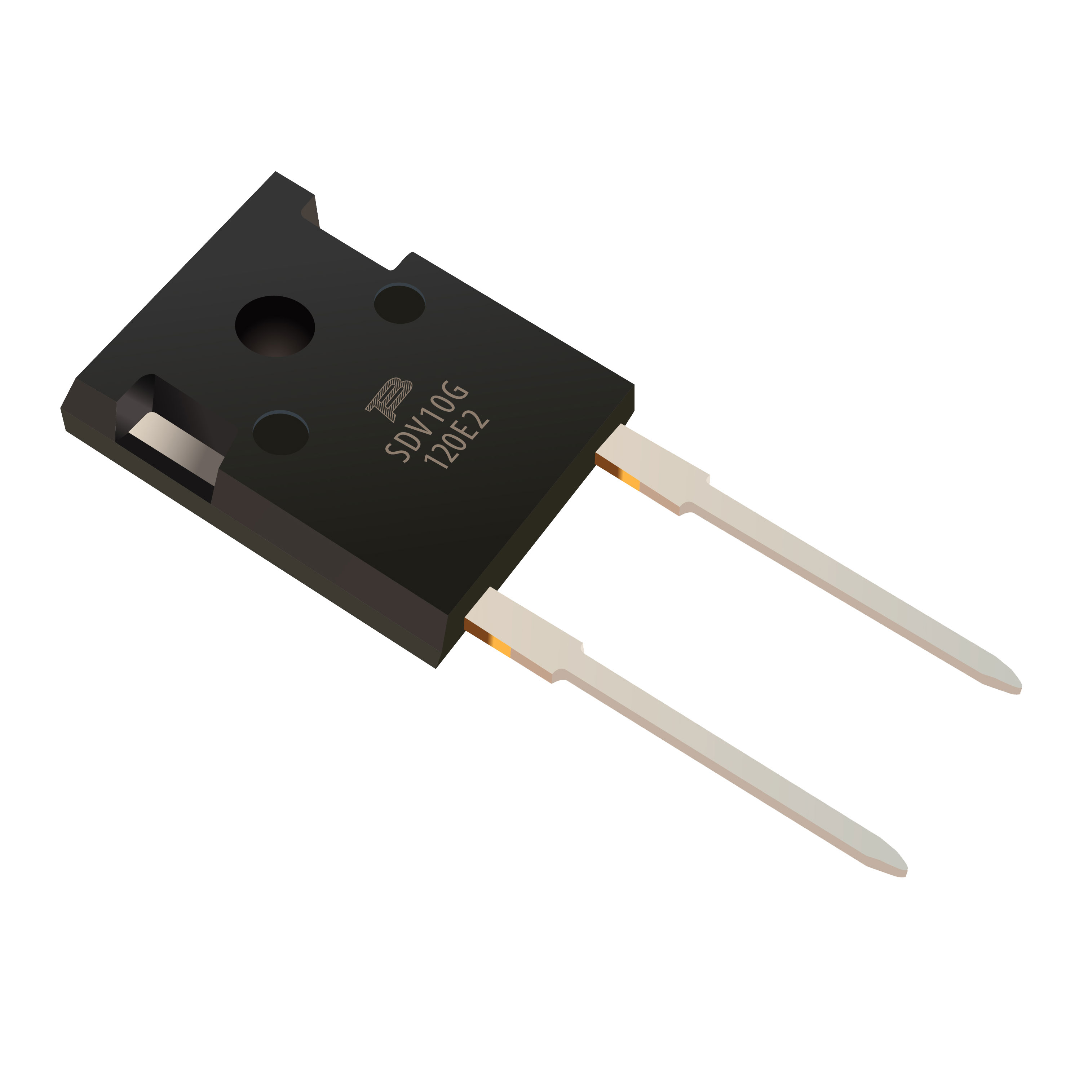

BSDV10G120E2
DIOD SCHOT SIC 1200V 10A TO247-2Manufacturer: Bourns Inc.
Categories: Single Diodes
Quality Control: Learn More
Diode 1200 V 10A Through Hole TO-247
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-2 |
| Mounting Type | Through Hole |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Technology | SiC (Silicon Carbide) Schottky |
| Capacitance @ Vr, F | 481pF @ 1V, 1MHz |
| Current - Average Rectified (Io) | 10A |
| Supplier Device Package | TO-247 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.6 V @ 10 A |
| Current - Reverse Leakage @ Vr | 50 µA @ 1200 V |
Request a Quote
