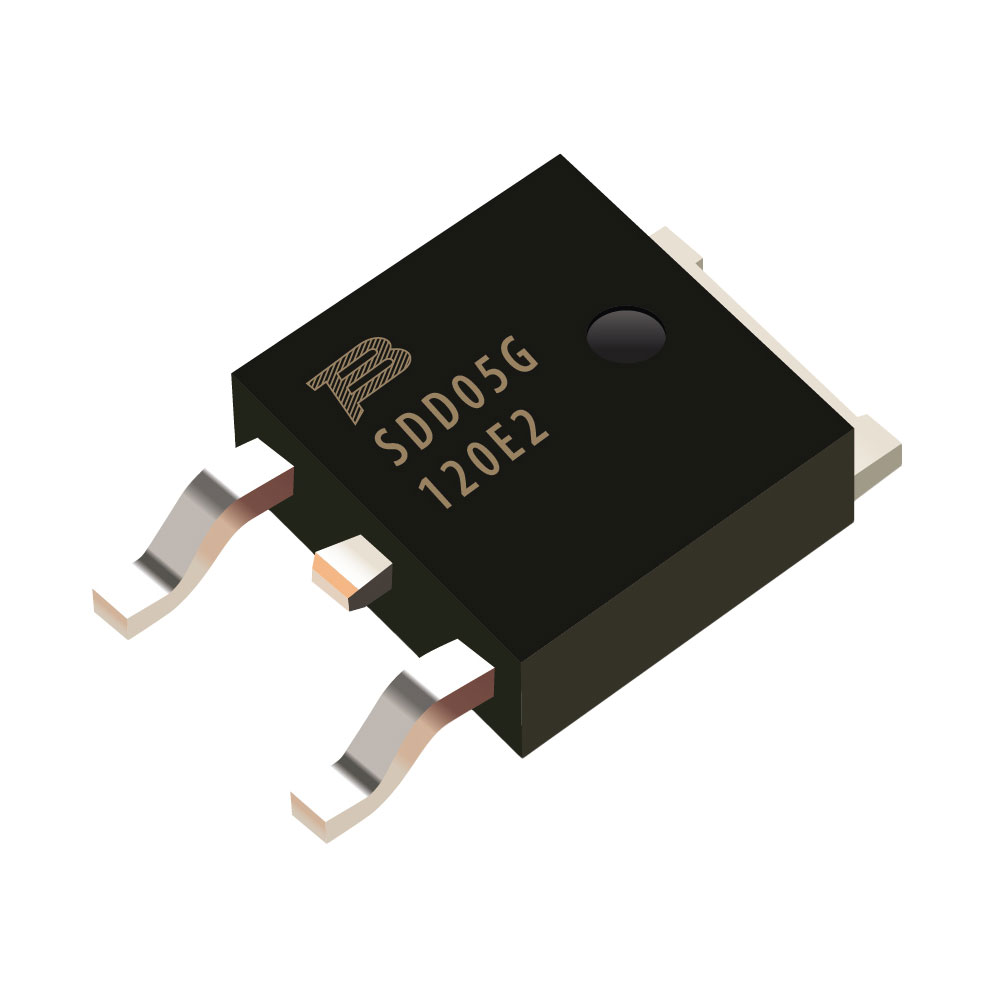

BSDD05G120E2
DIODE SCHOT SIC 1200V 5A TO252Manufacturer: Bourns Inc.
Categories: Single Diodes
Quality Control: Learn More
Diode 1200 V 5A Surface Mount TO-252 (DPAK)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Technology | SiC (Silicon Carbide) Schottky |
| Capacitance @ Vr, F | 260pF @ 1V, 1MHz |
| Current - Average Rectified (Io) | 5A |
| Supplier Device Package | TO-252 (DPAK) |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.6 V @ 5 A |
| Current - Reverse Leakage @ Vr | 25 µA @ 1200 V |
