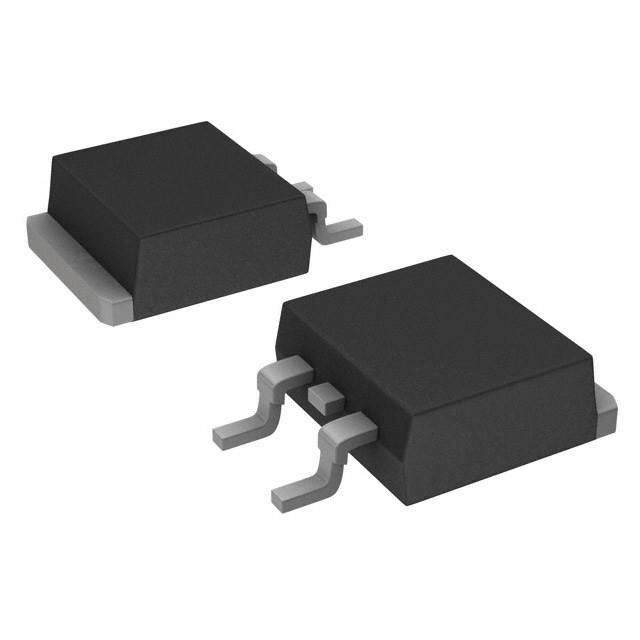

BSDB10S65E6
DIODE SCHOT SIC 650V 10A TO263Manufacturer: Bourns Inc.
Categories: Single Diodes
Quality Control: Learn More
Diode 650 V 10A Surface Mount TO-263
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Mounting Type | Surface Mount |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Technology | SiC (Silicon Carbide) Schottky |
| Capacitance @ Vr, F | 500pF @ 1V, 1MHz |
| Current - Average Rectified (Io) | 10A |
| Supplier Device Package | TO-263 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Voltage - Forward (Vf) (Max) @ If | 1.45 V @ 10 A |
| Current - Reverse Leakage @ Vr | 50 µA @ 650 V |
