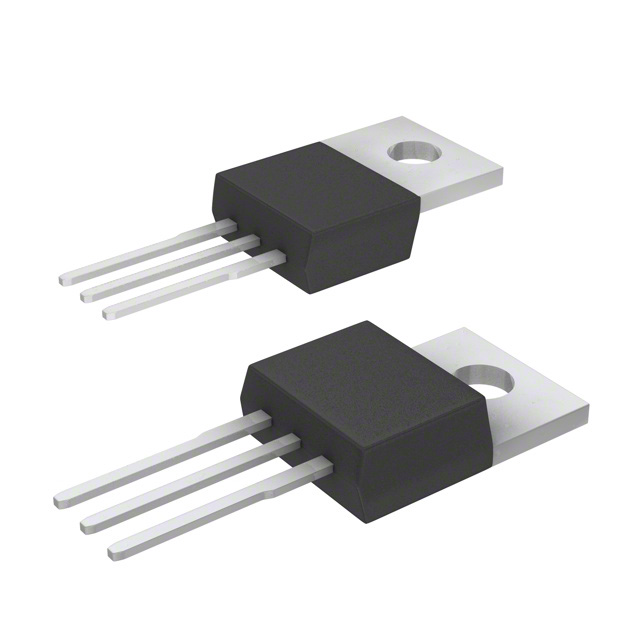

BD648-S
TRANS PNP DARL 80V 8A TO220Manufacturer: Bourns Inc.
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bourns Inc. BD648-S is a PNP Darlington bipolar transistor designed for robust power applications. This component features a 80 V collector-emitter breakdown voltage and a continuous collector current capability of up to 8 A. The BD648-S offers a high DC current gain (hFE) of a minimum 750 at 3 A and 3 V, characteristic of its Darlington configuration. It has a saturated voltage (Vce Sat) of 2.5 V maximum at 50 mA base current and 5 A collector current, and a collector cutoff current (Ic) of 500 µA maximum. With a 2 W power dissipation and a TO-220 package, this transistor is suitable for mounting via through-hole methods. Operating temperature ranges from -65°C to 150°C. This device finds application in power switching, motor control, and general power amplification circuits across various industrial sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Transistor Type | PNP - Darlington |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 2.5V @ 50mA, 5A |
| Current - Collector Cutoff (Max) | 500µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 750 @ 3A, 3V |
| Frequency - Transition | - |
| Supplier Device Package | TO-220 |
| Current - Collector (Ic) (Max) | 8 A |
| Voltage - Collector Emitter Breakdown (Max) | 80 V |
| Power - Max | 2 W |
