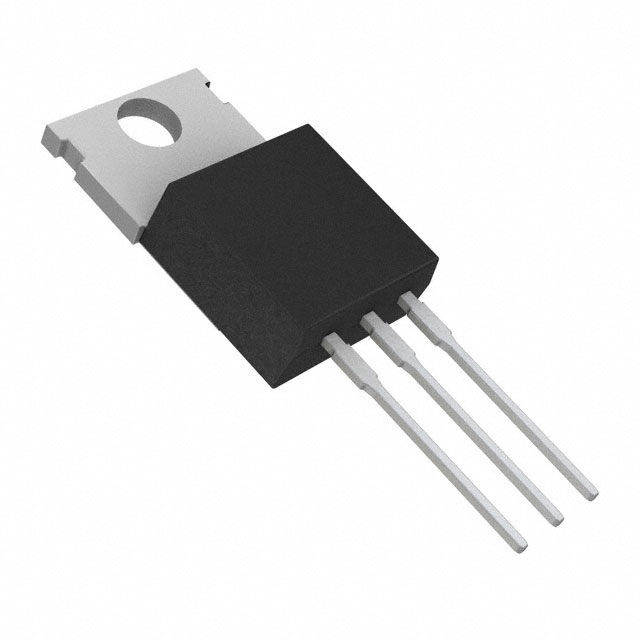

Bourns Inc. TIC126N-S is an 800V, 12A standard recovery SCR designed for through-hole mounting in a TO-220-3 package. This component features a maximum on-state current of 7.5A (average) and 12A (RMS). The gate trigger current (Igt) is a maximum of 20mA, with a maximum gate trigger voltage (Vgt) of 1.5V. Off-state current is rated at a maximum of 2mA, and hold current (Ih) is a maximum of 40mA. It exhibits excellent surge capability with a non-repetitive surge current of 100A at 50Hz. The operating temperature range is -40°C to 110°C. This SCR is suitable for power control applications in industrial and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 110°C |
| Current - Hold (Ih) (Max) | 40 mA |
| Current - Gate Trigger (Igt) (Max) | 20 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 100A @ 50Hz |
| Current - On State (It (AV)) (Max) | 7.5 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Voltage - On State (Vtm) (Max) | 1.4 V |
| Current - Off State (Max) | 2 mA |
| Supplier Device Package | TO-220-3 |
| Current - On State (It (RMS)) (Max) | 12 A |
| Voltage - Off State | 800 V |
