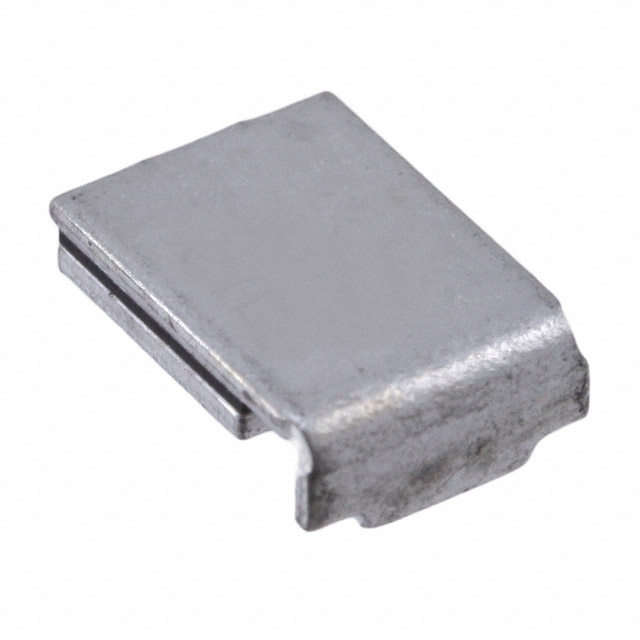

MF-SM200-2
PTC RESET FUSE 15V 2A 2SMDManufacturer: Bourns Inc.
Categories: PTC Resettable Fuses
Quality Control: Learn More
Polymeric PTC Resettable Fuse 15V 2 A Ih Surface Mount 2-SMD
Additional Information
Series: Multifuse®, MF-SMRoHS Status: ROHS3 CompliantManufacturer Lead Time: 4 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD |
| Size / Dimension | 0.344"" L x 0.264"" W (8.75mm x 6.71mm) |
| Mounting Type | Surface Mount |
| Type | Polymeric |
| Operating Temperature | -40°C ~ 85°C |
| Lead Spacing | - |
| Current - Hold (Ih) (Max) | 2 A |
| Current - Trip (It) | 4 A |
| Voltage - Max | 15V |
| Ratings | - |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.118"" (3.00mm) |
| Grade | Automotive |
| Current - Max | 100 A |
| Time to Trip | 12 s |
| Resistance - Initial (Ri) (Min) | 45 mOhms |
| Resistance - Post Trip (R1) (Max) | 125 mOhms |
| Qualification | AEC-Q200 |
