BPS130-HG300P-1S
SENSOR 300PSIG 0.122"" 4.95VManufacturer: Bourns Inc.
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor 300PSI (2068.43kPa) Gauge Male - 0.122"" (3.1mm) Tube 0.45 V ~ 4.95 V
Additional Information
Series: BPS130RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | - |
| Output Type | Analog Voltage |
| Output | 0.45 V ~ 4.95 V |
| Operating Pressure | 300PSI (2068.43kPa) |
| Pressure Type | Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 150°C |
| Termination Style | Solder Pad |
| Voltage - Supply | 4.5V ~ 5.5V |
| Port Size | Male - 0.122"" (3.1mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 600PSI (4136.85kPa) |
Request a Quote
Clients Also Buy

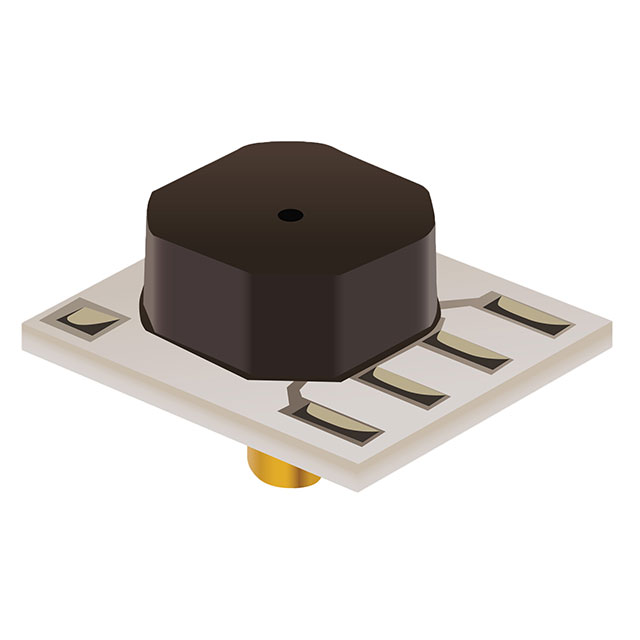

BPS340-HA100P-4SG
