BPS230-D3P0-S10E
HUMIDITY SENSOR, 0 - 100% RH, DIManufacturer: Bourns Inc.
Categories: Humidity, Moisture Sensors
Quality Control: Learn More

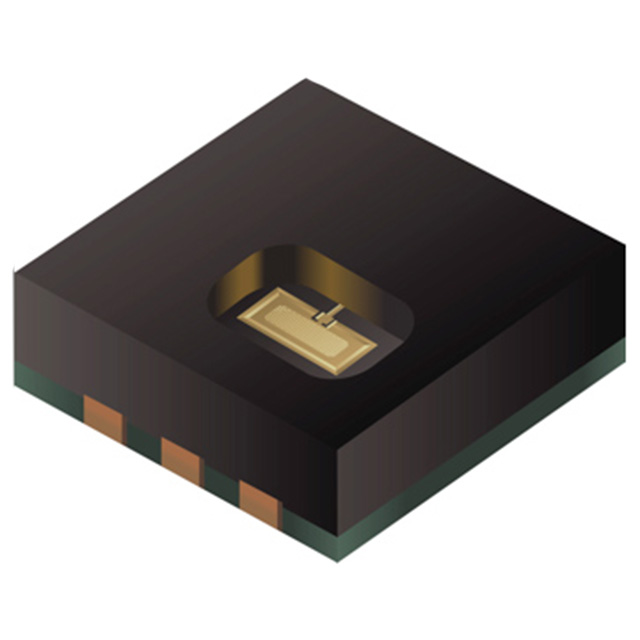

Bourns Inc. BPS230-D3P0-S10E is a humidity and temperature sensor featuring a 0 to 100% Relative Humidity (RH) range with an accuracy of ±3% RH. This surface mount device utilizes an I2C interface for data communication and provides 10-bit digital output. The sensor boasts a fast response time of 8 seconds and operates across a wide temperature range of -40°C to 105°C. Designed for high-volume integration, it is supplied in a 6-SMD, No Lead package, delivered on tape and reel for automated assembly processes. The BPS230-D3P0-S10E is suitable for applications in environmental monitoring, industrial control, and HVAC systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, No Lead |
| Output Type | I2C |
| Sensitivity | - |
| Mounting Type | Surface Mount |
| Output | 10 b |
| Accuracy | ±3% RH |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 1.62V ~ 5.5V |
| Sensor Type | Humidity, Temperature |
| Humidity Range | 0 ~ 100% RH |
| Supplier Device Package | 6-SMD |
| Response Time | 8 s |
