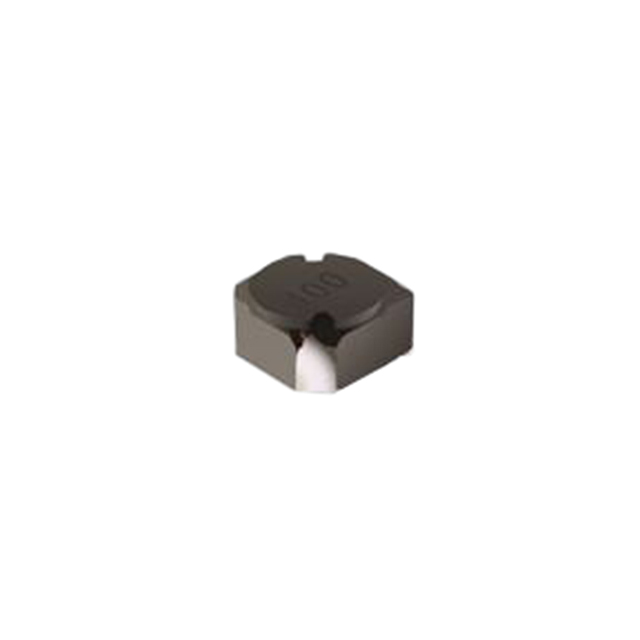

SRR4528A-100M
FIXED IND 10UH 1.76A 88MOHM SMDManufacturer: Bourns Inc.
Categories: Fixed Inductors
Quality Control: Learn More
10 µH Shielded Inductor 1.76 A 88mOhm Max Nonstandard, Corner Terminals
Additional Information
Series: SRR4528ARoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard, Corner Terminals |
| Size / Dimension | 0.197"" L x 0.197"" W (5.00mm x 5.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | - |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 88mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 35MHz |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 1.13A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.110"" (2.80mm) |
| Inductance | 10 µH |
| Current Rating (Amps) | 1.76 A |
Request a Quote
Clients Also Buy
SRR4028-331Y
FIXED IND 330UH 300MA 1.7OHM SMD

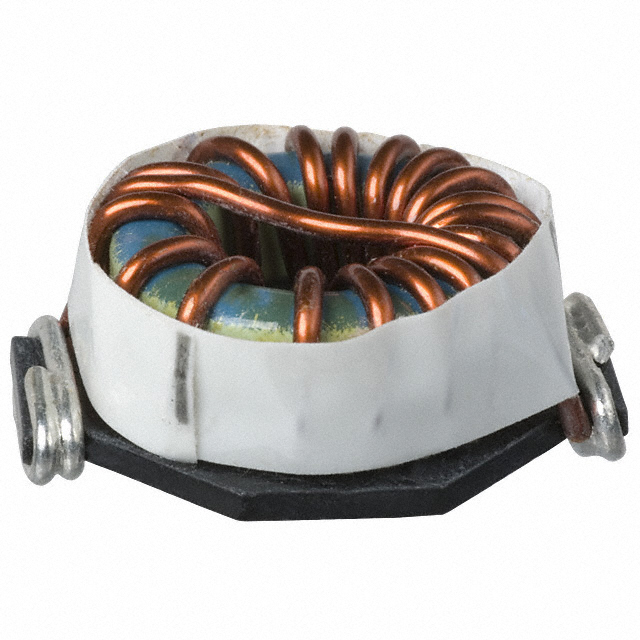

PM2110-220K-RC
FIXED IND 22UH 9.7A 10 MOHM SMD

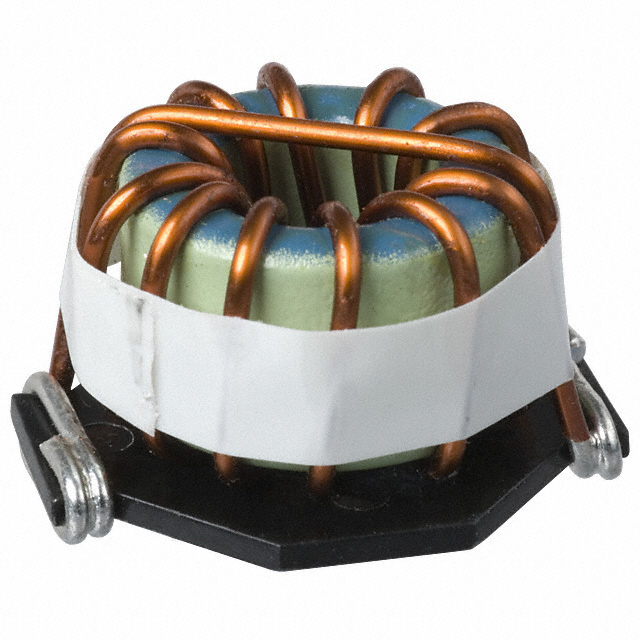

PM2120-330K-RC
