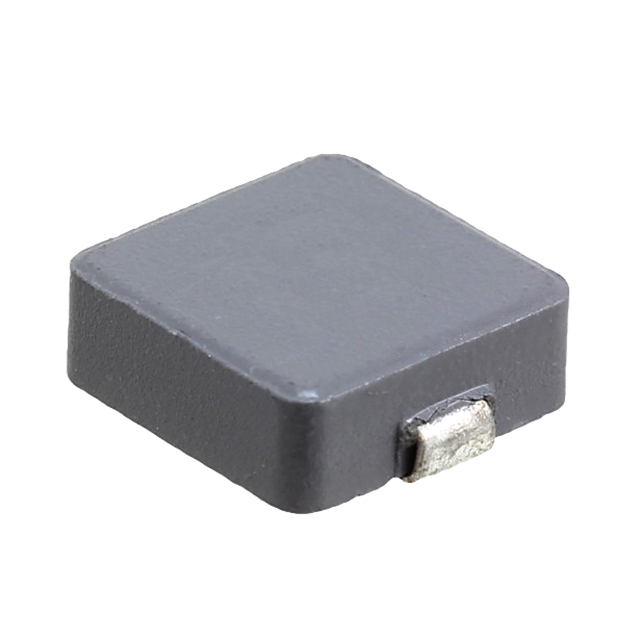

SRP1038A-1R0M
FIXED IND 1UH 18A 3.3 MOHM SMDManufacturer: Bourns Inc.
Categories: Fixed Inductors
Quality Control: Learn More
1 µH Shielded Drum Core, Wirewound Inductor 18 A 3.3mOhm Max Nonstandard
Additional Information
Series: SRP1038ARoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.433"" L x 0.394"" W (11.00mm x 10.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 150°C |
| DC Resistance (DCR) | 3.3mOhm Max |
| Q @ Freq | 20 @ 100kHz |
| Frequency - Self Resonant | 47MHz |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 36A |
| Material - Core | Carbonyl Powder |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.157"" (4.00mm) |
| Inductance | 1 µH |
| Current Rating (Amps) | 18 A |
