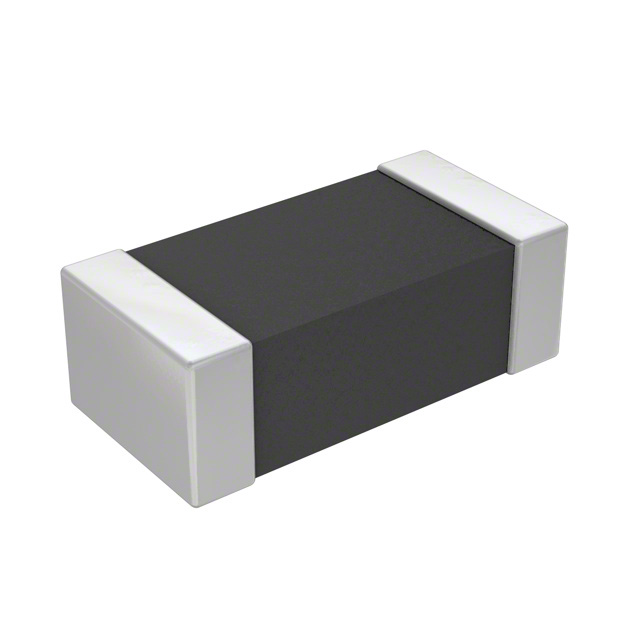

MH2029-601Y
FERRITE BEAD 600 OHM 0805 1LNManufacturer: Bourns Inc.
Categories: Ferrite Beads and Chips
Quality Control: Learn More
600 Ohms @ 100 MHz 1 Power, Signal Line Ferrite Bead 0805 (2012 Metric) 1A 200mOhm
Additional Information
Series: MH2029RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0805 (2012 Metric) |
| Filter Type | Power, Signal Line |
| Size / Dimension | 0.079"" L x 0.047"" W (2.00mm x 1.20mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Height (Max) | 0.043"" (1.10mm) |
| Current Rating (Max) | 1A |
| DC Resistance (DCR) (Max) | 200mOhm |
| Number of Lines | 1 |
| Impedance @ Frequency | 600 Ohms @ 100 MHz |
