PEC12-4225F-N0024
ROTARY ENCODER MECHANICAL 24PPRManufacturer: Bourns Inc.
Categories: Encoders
Quality Control: Learn More

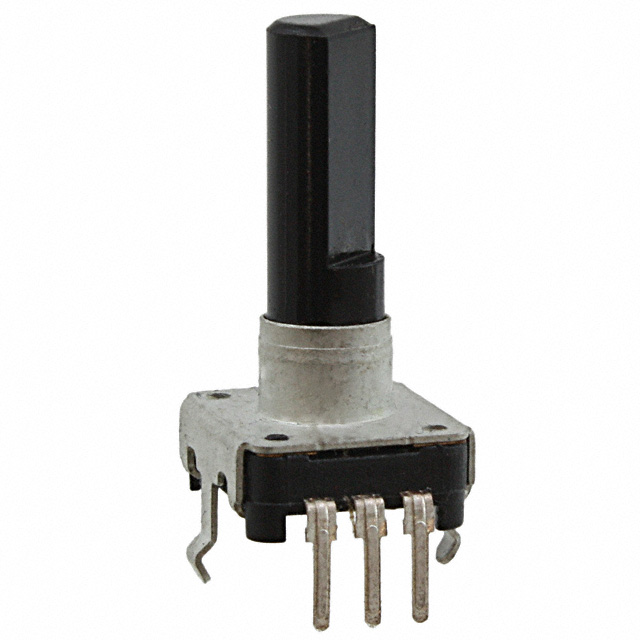

Bourns Inc. PEC12 series rotary encoder, part number PEC12-4225F-N0024. This mechanical encoder features 24 pulses per revolution (PPR) in a vertical, through-hole mounting configuration. The PEC12-4225F-N0024 provides incremental quadrature output with a detent mechanism for tactile feedback. It is designed with a 6mm diameter flatted end actuator and has a rotational life of at least 30,000 cycles. This component is suitable for applications in consumer electronics, industrial automation, and audio equipment where precise rotational input is required. The termination style is PC Pin.
Additional Information
Series: PEC12RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Output Type | Quadrature (Incremental) |
| Mounting Type | PCB, Through Hole |
| Orientation | Vertical |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Encoder Type | Mechanical |
| Detent | Yes |
| Pulses per Revolution | 24 |
| Actuator Type | 6mm Dia Flatted End |
| Built in Switch | No |
| Rotational Life (Cycles Min) | 30k |
| Programmable | Not Verified |
