PEC12-4217F-S0024
ROTARY ENCODER MECHANICAL 24PPRManufacturer: Bourns Inc.
Categories: Encoders
Quality Control: Learn More

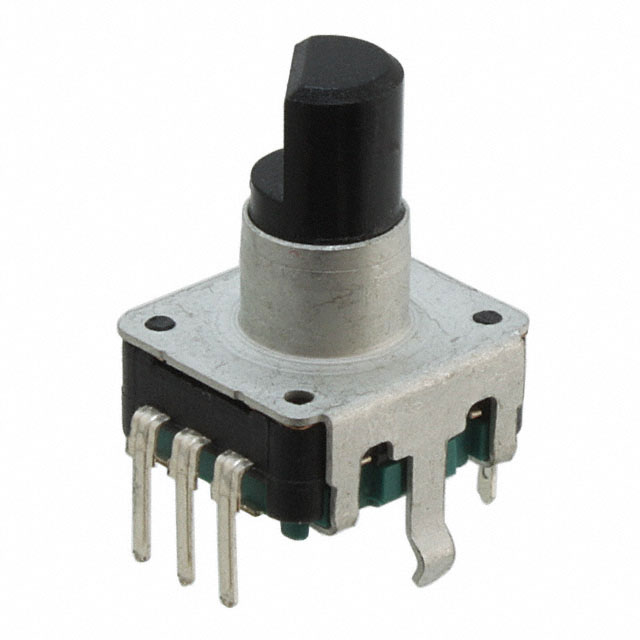

Bourns Inc. PEC12 series mechanical rotary encoder, part number PEC12-4217F-S0024. This vertical, through-hole mounted encoder provides 24 pulses per revolution (PPR) in a quadrature output format. It features a 6mm flatted end actuator, integrated detents for tactile feedback, and a built-in switch. Designed for a rotational life of at least 30,000 cycles, this component is suitable for applications in industrial automation, consumer electronics, and automotive systems where precise rotational input is required. Termination is via PC pins.
Additional Information
Series: PEC12RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Output Type | Quadrature (Incremental) |
| Mounting Type | PCB, Through Hole |
| Orientation | Vertical |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Encoder Type | Mechanical |
| Detent | Yes |
| Pulses per Revolution | 24 |
| Actuator Type | 6mm Dia Flatted End |
| Built in Switch | Yes |
| Rotational Life (Cycles Min) | 30k |
| Programmable | Not Verified |
