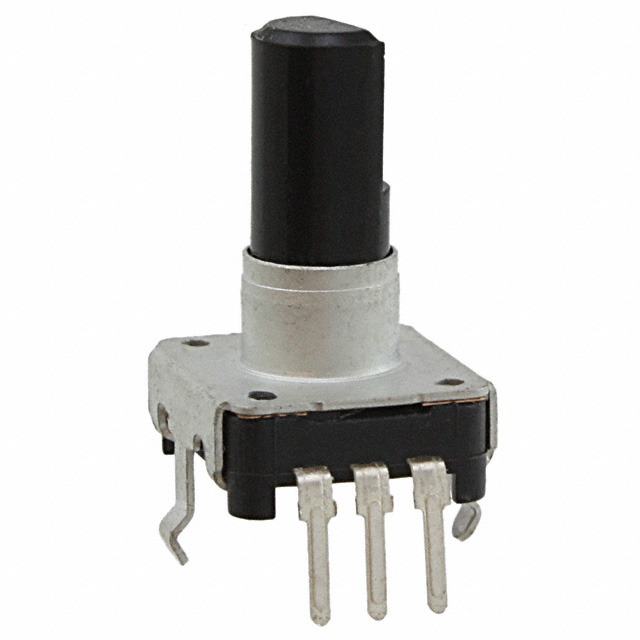

PEC12-4120F-S0012
ROTARY ENCODER MECHANICAL 12PPRManufacturer: Bourns Inc.
Categories: Encoders
Quality Control: Learn More
Bourns Inc. PEC12-4120F-S0012 is a vertical, PCB mount mechanical rotary encoder from the PEC12 series. This component features 12 pulses per revolution (PPR) outputting Quadrature (Incremental) signals. The actuator is a 6mm diameter flatted end with a detent mechanism and a built-in switch. Designed for through-hole mounting, it offers a rotational life of a minimum of 30,000 cycles. This encoder is commonly utilized in industrial automation, consumer electronics, and automotive applications requiring precise rotational input and user interface control.
Additional Information
Series: PEC12RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Output Type | Quadrature (Incremental) |
| Mounting Type | PCB, Through Hole |
| Orientation | Vertical |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Encoder Type | Mechanical |
| Detent | Yes |
| Pulses per Revolution | 12 |
| Actuator Type | 6mm Dia Flatted End |
| Built in Switch | Yes |
| Rotational Life (Cycles Min) | 30k |
| Programmable | Not Verified |
