PEC11-4225F-S0024
ROTARY ENCODER MECHANICAL 24PPRManufacturer: Bourns Inc.
Categories: Encoders
Quality Control: Learn More

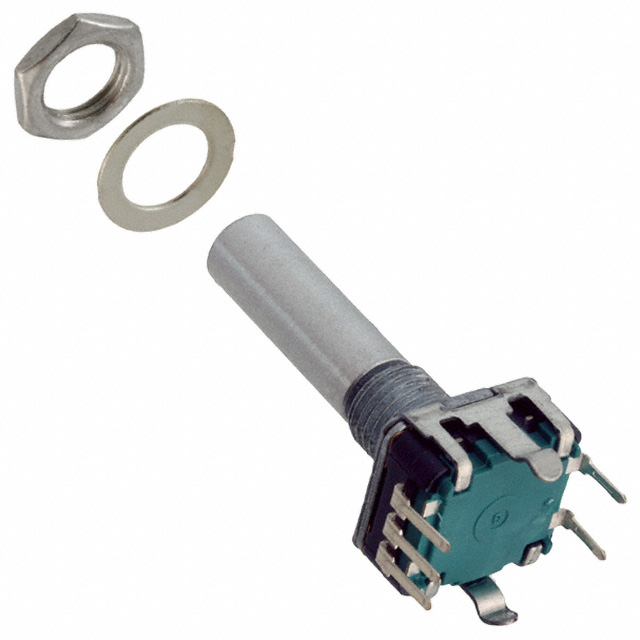

Bourns Inc. PEC11 Series mechanical rotary encoder, part number PEC11-4225F-S0024. This vertical mount encoder features 24 pulses per revolution (PPR) and a flatted end actuator with a 6mm diameter. It incorporates a built-in switch and detents for tactile feedback, offering a rotational life of a minimum of 30,000 cycles. The output type is quadrature (incremental). This component is typically utilized in industrial automation, consumer electronics, and automotive control systems. The termination style is PC pin, and it is supplied in tray packaging.
Additional Information
Series: PEC11RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Output Type | Quadrature (Incremental) |
| Mounting Type | Panel, PCB Through Hole |
| Orientation | Vertical |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Encoder Type | Mechanical |
| Detent | Yes |
| Pulses per Revolution | 24 |
| Actuator Type | 6mm Dia Flatted End |
| Built in Switch | Yes |
| Rotational Life (Cycles Min) | 30k |
| Programmable | Not Verified |
