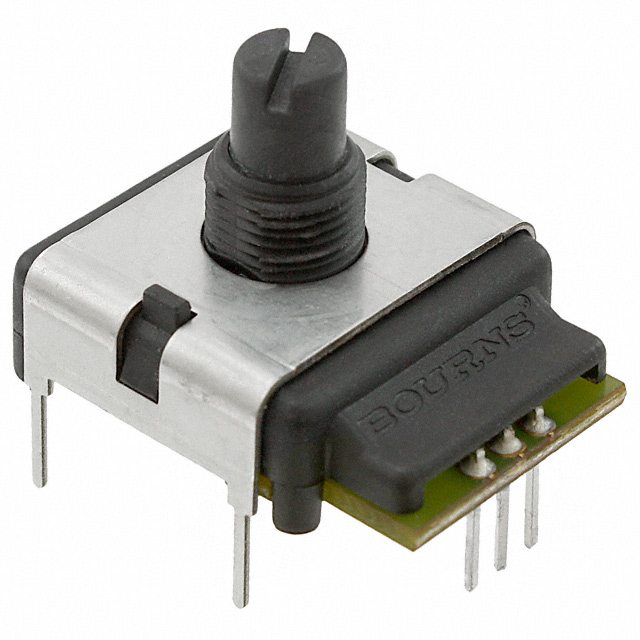

ECW1J-B16-BC0024
ROTARY ENCODER MECHANICAL 24PPRManufacturer: Bourns Inc.
Categories: Encoders
Quality Control: Learn More
Bourns Inc. ECW series ECW1J-B16-BC0024 is a vertical mechanical rotary encoder with 24 pulses per revolution (PPR) and quadrature output. This panel-mount encoder features a 1/4" diameter slotted shaft and a detent mechanism, offering 200,000 rotational cycles minimum life. Designed for PCB through-hole mounting with PC pin termination, it is suitable for applications requiring precise rotational input and positioning. Industries utilizing this component include industrial automation, control systems, and consumer electronics where reliable mechanical encoding is essential.
Additional Information
Series: ECWRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Output Type | Quadrature (Incremental) |
| Mounting Type | Panel, PCB Through Hole |
| Orientation | Vertical |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Encoder Type | Mechanical |
| Detent | Yes |
| Pulses per Revolution | 24 |
| Actuator Type | 1/4"" Dia Slotted End |
| Built in Switch | No |
| Rotational Life (Cycles Min) | 200k |
| Programmable | Not Verified |
