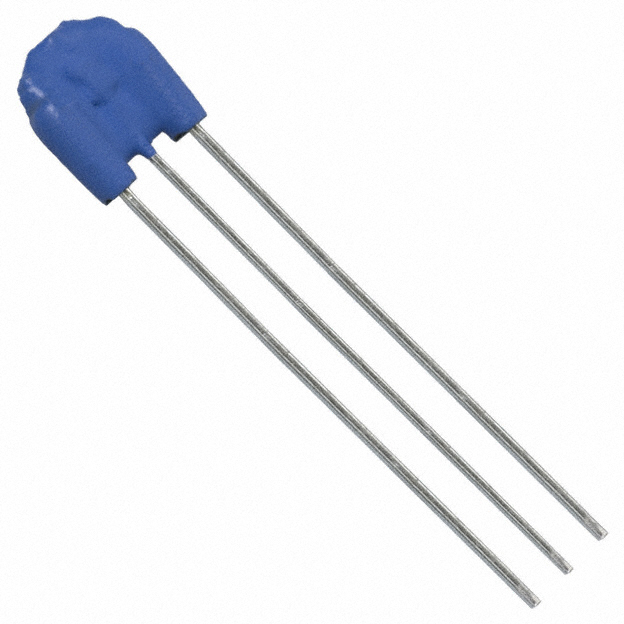

EMI220T-RC
FILTER LC(T) 0.05 OHM/22PF THManufacturer: Bourns Inc.
Categories: EMI/RFI Filters (LC, RC Networks)
Quality Control: Learn More
LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel R = 0.05Ohms, C = 22pF 5 A Radial - 3 Leads
Additional Information
Series: EMITRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Box (TB)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Box (TB) |
| Voltage - Rated | 50V |
| Package / Case | Radial - 3 Leads |
| Size / Dimension | 0.354"" L x 0.126"" W (9.00mm x 3.20mm) |
| Mounting Type | Through Hole |
| Type | Low Pass |
| Operating Temperature | -25°C ~ 85°C |
| Values | R = 0.05Ohms, C = 22pF |
| Height | 0.315"" (8.00mm) |
| Attenuation Value | 25dB @ 800MHz ~ 1GHz |
| Filter Order | 3rd |
| Applications | General Purpose |
| Technology | LC (T-Type) |
| Center / Cutoff Frequency | - |
| Resistance - Channel (Ohms) | 0.05 |
| ESD Protection | No |
| Number of Channels | 1 |
| Current | 5 A |
