CDNBS04-B08200
BRIDGE RECT 1P 200V 800MA NBS04Manufacturer: Bourns Inc.
Categories: Bridge Rectifiers
Quality Control: Learn More

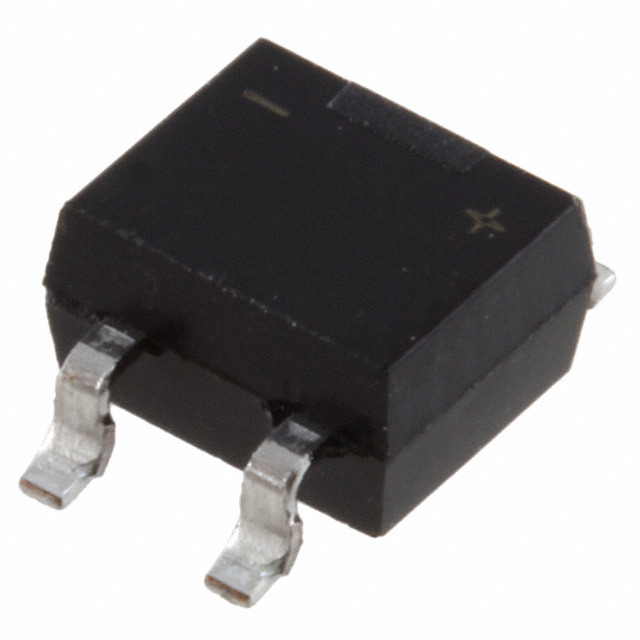

Bourns Inc. presents the CDNBS04-B08200, a single-phase bridge rectifier designed for surface mount applications. This component offers a peak reverse voltage rating of 200V and an average rectified current handling capability of 800mA. Featuring a standard technology, the rectifier exhibits a maximum forward voltage drop of 1.15V at 400mA and a low reverse leakage current of 5 µA at 200V. The NBS04 package, a 4-SMD Gull Wing, is supplied on tape and reel for efficient assembly. Operating across a temperature range of -55°C to 150°C (TJ), this bridge rectifier is suitable for applications in power supplies, consumer electronics, and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing |
| Mounting Type | Surface Mount |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | NBS04 |
| Voltage - Peak Reverse (Max) | 200 V |
| Current - Average Rectified (Io) | 800 mA |
| Voltage - Forward (Vf) (Max) @ If | 1.15 V @ 400 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 200 V |
