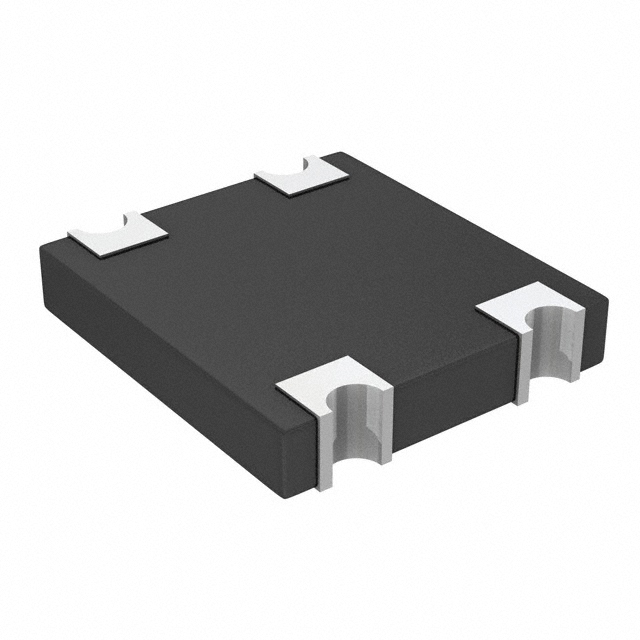

CD2320-B1800
BRIDGE RECT 1PHASE 1KV 1A 2320Manufacturer: Bourns Inc.
Categories: Bridge Rectifiers
Quality Control: Learn More
Bourns Inc. CD2320-B1800 is a single-phase bridge rectifier featuring Schottky technology. This surface-mount component offers a peak reverse voltage rating of 1 kV and an average rectified forward current of 1 A. With a maximum forward voltage drop of 1 V at 1 A, it exhibits a low reverse leakage current of 5 µA at 800 V. Operating efficiently across a wide temperature range from -55°C to 175°C, the CD2320-B1800 is housed in a 2320 package with concave terminals. Its robust design makes it suitable for applications in power supplies, industrial automation, and consumer electronics. The component is supplied on a tape and reel for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | Chip, Concave Terminals |
| Mounting Type | Surface Mount |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | Schottky |
| Supplier Device Package | 2320 |
| Voltage - Peak Reverse (Max) | 1 kV |
| Current - Average Rectified (Io) | 1 A |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 800 V |
