AMM20B5A1CLASL140
MULTI-TURN NON-CONTACT SENSORManufacturer: Bourns Inc.
Categories: Angle, Linear Position Measuring
Quality Control: Learn More

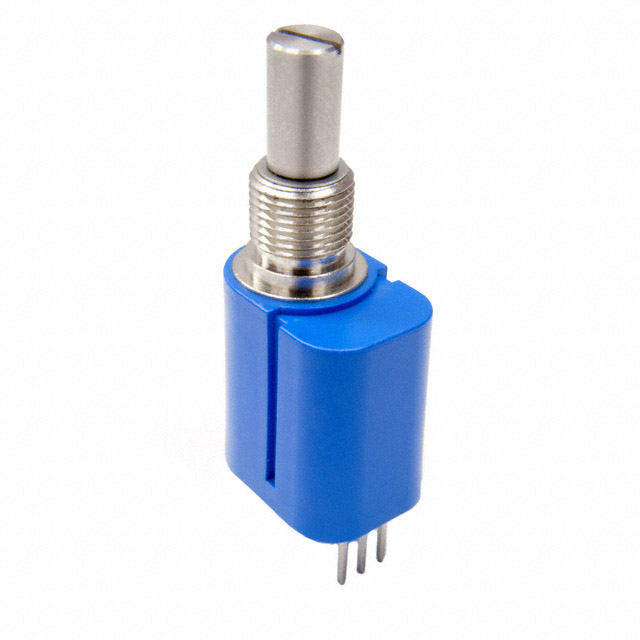

Bourns Inc. AMM20B5A1CLASL140 is a multi-turn non-contact Hall Effect rotary position sensor from the AMM20B series. This component features a slotted shaft actuator for precise mechanical engagement and is designed for measuring rotary position with high accuracy. The sensor offers a linearity of ±0.3% and provides an analog voltage output. Its panel mount configuration facilitates integration into various system architectures. The AMM20B series is widely utilized in industrial automation, robotics, and automotive applications where reliable and accurate angular measurement is critical. This device is supplied in tray packaging.
Additional Information
Series: AMM20BRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module, Slotted Shaft |
| Mounting Type | Panel Mount |
| Output | Analog Voltage |
| Linearity | ±0.3% |
| Linear Range | - |
| Actuator Type | Slotted Shaft |
| Technology | Hall Effect |
| Resistance Tolerance | - |
| For Measuring | Rotary Position |
| Supplier Device Package | - |
| Programmable | - |
Request a Quote
Clients Also Buy
AMM20B5A1CLASL324
SENSOR ROTARY 3960DEG PC PIN
AMM20B5A1CLASL340
MULTI-TURN NON-CONTACT SENSOR

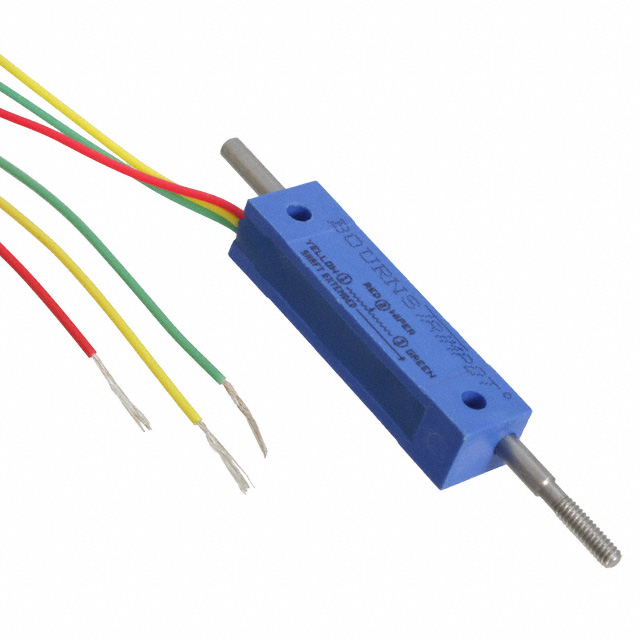

3048L-3-103
