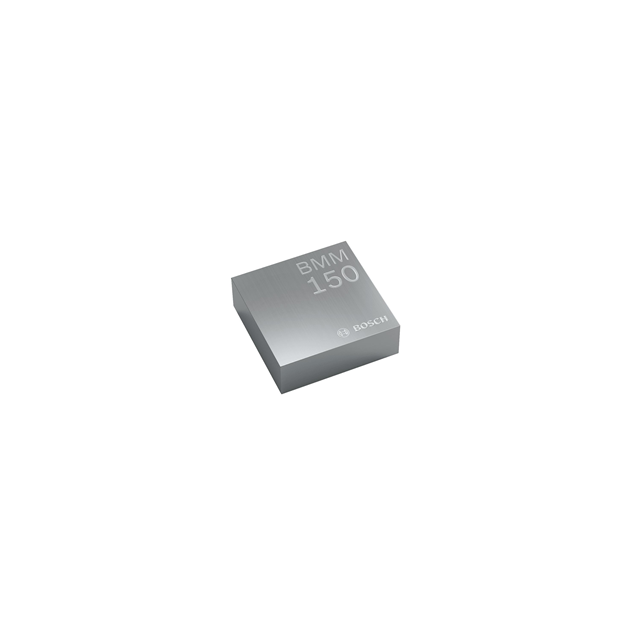

BMM150

SENSOR FLIPCORE/HALL SPI 12WLCSP

Manufacturer: Bosch Sensortec

Categories: Linear, Compass (ICs)

Quality Control: Learn More

Bosch Sensortec BMM150 is a low-power, 3-axis geomagnetic sensor with a FlipCore technology for precise magnetic field measurement. This component offers a 13-bit resolution across its X, Y, and Z axes, with sensing ranges of ±1.3mT for the X and Y axes and ±2.5mT for the Z axis. Communication is facilitated via I2C and SPI interfaces, supporting flexible system integration. The BMM150 operates within a supply voltage range of 1.62V to 3.6V and has a maximum supply current of 20mA. Its 12-WLCSP package, measuring 1.56x1.56mm, is designed for surface mounting and is supplied on tape and reel. This device is well-suited for applications in consumer electronics, automotive, and industrial automation requiring accurate orientation and magnetic field detection. The operating temperature range is -40°C to 85°C, and it features a 10Hz bandwidth.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:
Technical Details:
Features-
PackagingTape & Reel (TR)
Package / Case12-UFBGA, WLCSP
Output TypeI2C, SPI
Mounting TypeSurface Mount
AxisX, Y, Z
Operating Temperature-40°C ~ 85°C
Voltage - Supply1.62V ~ 3.6V
Bandwidth10Hz
TechnologyFlipCore, Hall Effect
Resolution13 b
Sensing Range±1.3mT (X,Y), ±2.5mT (Z)
Current - Output (Max)-
Current - Supply (Max)20mA
Supplier Device Package12-WLCSP (1.56x1.56)
