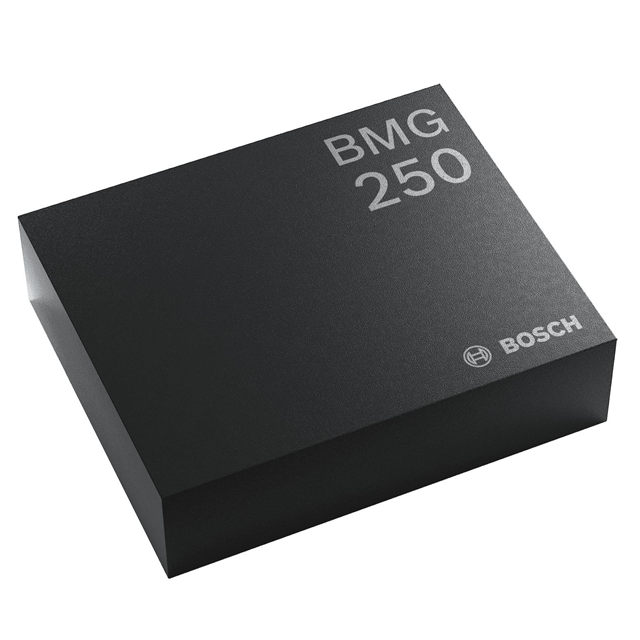

BMG250
GYROSCOPE 3-AXIS SPI/I2C SMDManufacturer: Bosch Sensortec
Categories: Gyroscopes
Quality Control: Learn More
The Bosch Sensortec BMG250 is a compact, 3-axis digital gyroscope designed for high-performance motion sensing applications. This component offers selectable full-scale ranges of ±125, ±250, ±500, ±1000, and ±2000 °/s, coupled with an adjustable bandwidth from 25Hz up to 3200Hz, enabling precise control over data acquisition. Communication is facilitated via industry-standard I2C and SPI interfaces, supporting efficient data transfer. The BMG250 operates within a voltage supply range of 1.71V to 3.6V, drawing a typical current of 850 µA. Key features include adjustable bandwidth, selectable sensor ranges, and a low-power sleep mode, contributing to power efficiency. Its 14-LGA package is supplied on tape and reel, making it suitable for automated assembly processes. This device finds application in consumer electronics, industrial automation, and automotive systems requiring accurate angular rate measurement.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Adjustable Bandwidth, Selectable Scale, Sleep Mode |
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-LGA |
| Output Type | I2C, SPI |
| Type | Digital |
| Axis | X (Pitch), Y (Roll), Z (Yaw) |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.71V ~ 3.6V |
| Bandwidth | 25Hz ~ 3200Hz |
| Range °/s | ±125, 250, 500, 1000, 2000 |
| Sensitivity (mV/°/s) | - |
| Sensitivity (LSB/(°/s)) | 16.4 ~ 262.4 |
| Current - Supply | 850 µA |
