BMG160
GYROSCOPE 3-AXIS SPI/I2C SMDManufacturer: Bosch Sensortec
Categories: Gyroscopes
Quality Control: Learn More

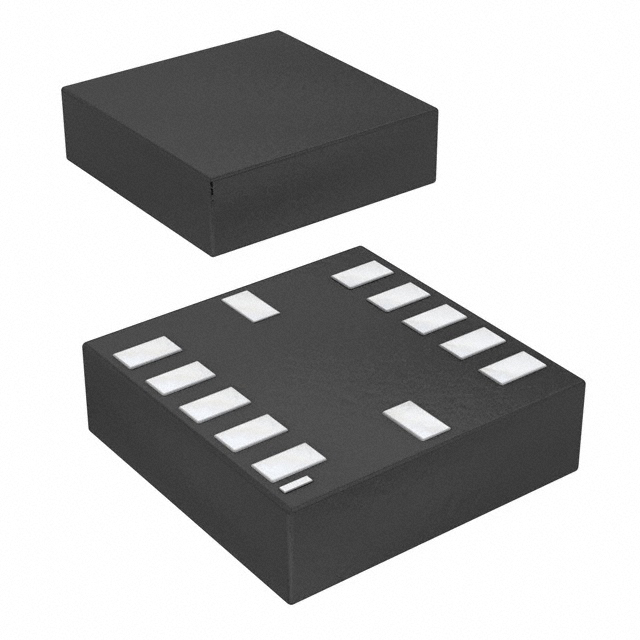

Bosch Sensortec BMG160 is a digital 3-axis gyroscope designed for motion sensing applications. This component provides angular rate sensing along the X (pitch), Y (roll), and Z (yaw) axes, with selectable full-scale ranges of ±125, ±250, ±500, ±1000, and ±2000 °/s. The BMG160 features adjustable bandwidth from 12Hz to 230Hz, enabling customization for various performance requirements. Communication is facilitated via I2C or SPI serial interfaces. The device operates within a voltage supply range of 2.4V to 3.6V and consumes a typical current of 5 mA. Integrated features include a temperature sensor and a low-power sleep mode. The BMG160 is housed in a 12-LGA package, supplied on tape and reel. Its capabilities make it suitable for use in consumer electronics, industrial automation, and automotive systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor |
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-VFLGA |
| Output Type | I2C, SPI |
| Type | Digital |
| Axis | X (Pitch), Y (Roll), Z (Yaw) |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.4V ~ 3.6V |
| Bandwidth | 12Hz ~ 230Hz |
| Range °/s | ±125, 250, 500, 1000, 2000 |
| Sensitivity (mV/°/s) | - |
| Sensitivity (LSB/(°/s)) | 16.4 ~ 262.4 |
| Current - Supply | 5 mA |
