PMR4PGDW6.0-CC
LED RECT PUR GRN PNL MNT W/ CONNManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

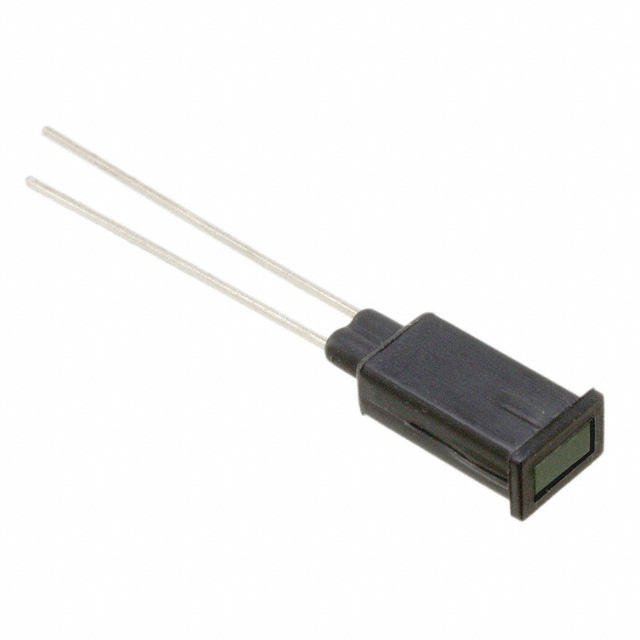

Bivar Inc. PMR4 series LED panel indicator, part number PMR4PGDW6-0-CC, features a diffused green lens with a 120° viewing angle. This component is designed for panel mounting with a 0.22" x 0.14" rectangular cutout. The unit operates with a typical forward voltage of 2.2V and a maximum forward current of 30mA, delivering 2mcd luminous intensity. Termination is provided by 6-inch wire leads. This indicator is suitable for applications in industrial automation, control panels, and general equipment status indication.
Additional Information
Series: PMR4RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 30mA |
| Voltage | 2.2V |
| Type | LED |
| Millicandela Rating | 2mcd |
| Termination Style | Wire Leads - 6"" (152.40mm) |
| Lens Color | Green |
| Viewing Angle | 120° |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.22"" x 0.14"" (5.59mm x 3.56mm) |
| Wavelength - Peak | 555nm |
| Lens Transparency | Diffused |
| Lamp Color | Green |
| Panel Cutout Shape | Rectangle |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 4.00mm x 2.10mm |
