PM5YTW12.0
PNL MNT YLW 20MA W/WIRE 12Manufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

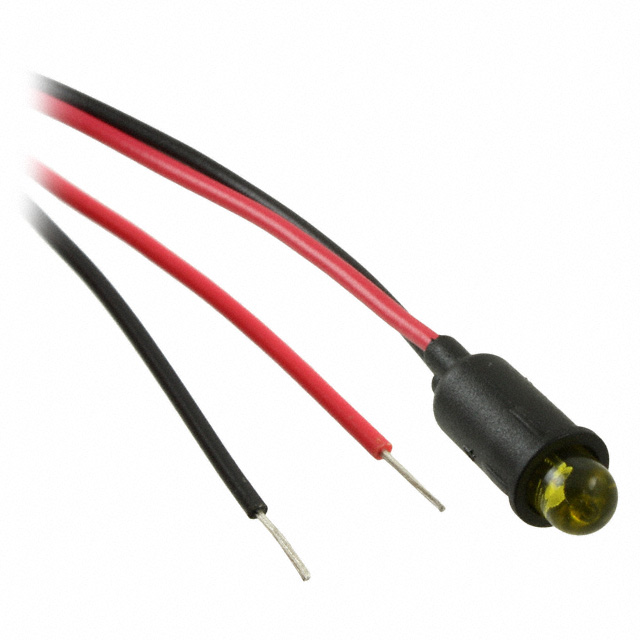

Bivar Inc. PM5 Series LED Panel Indicator, Part Number PM5YTW12-0, offers a yellow, clear, domed-top T-1 3/4 (5mm) lens with a 35° viewing angle. This panel mount indicator operates at a typical forward voltage of 2V and a maximum continuous forward current of 30mA, delivering 40mcd luminous intensity. Featuring 12-inch wire leads for termination, it is designed for panel cutouts of 0.25 inches (6.35mm) round. This component is suitable for applications in industrial automation, control panels, and signage.
Additional Information
Series: PM5RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 30mA |
| Voltage | 2V |
| Type | LED |
| Millicandela Rating | 40mcd |
| Termination Style | Wire Leads - 12"" (304.80mm) |
| Lens Color | Yellow |
| Viewing Angle | 35° |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.25"" (6.35mm) |
| Wavelength - Peak | 590nm |
| Lens Transparency | Clear |
| Lamp Color | Yellow |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
