PM5YT
PNL MNT W/ WIRE 590NM 40MCD YLWManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

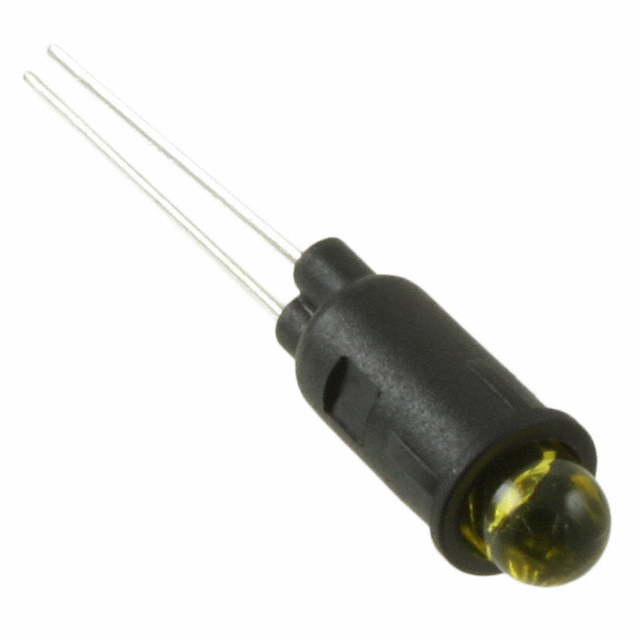

Bivar Inc. PM5 series LED Panel Indicator PM5YT. This panel mount LED features a 5mm (T-1 3/4) clear, domed, round lens with a 35° viewing angle. Emitting a vibrant yellow light at a peak wavelength of 590nm, it offers a typical luminous intensity of 40mcd at 30mA. The component is designed for a forward voltage of 2V and requires a 0.25" (6.35mm) round panel cutout. Applications include industrial control panels, instrumentation, and communication equipment. This component is supplied in tray packaging.
Additional Information
Series: PM5RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Current | 30mA |
| Voltage | 2V |
| Type | LED |
| Millicandela Rating | 40mcd |
| Termination Style | - |
| Lens Color | Yellow |
| Viewing Angle | 35° |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.25"" (6.35mm) |
| Wavelength - Peak | 590nm |
| Lens Transparency | Clear |
| Lamp Color | Yellow |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
