PM5UBWC
LED PANEL INDICATOR BLUE 3.7VManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More
The Bivar Inc. PM5UBWC is a blue LED panel indicator featuring a clear, domed T-1 3/4 lens with a 15° viewing angle. This component operates with a typical forward voltage of 3.7V and a maximum forward current of 76mA, delivering a luminous intensity of 2500mcd at a peak wavelength of 468nm. Designed for panel mounting, it requires a 0.25-inch round cutout. This indicator is suitable for applications in industrial control systems, consumer electronics, and telecommunications equipment where reliable visual feedback is essential. The component is supplied in a bag.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 76mA |
| Voltage | 3.7V |
| Type | LED |
| Millicandela Rating | 2500mcd |
| Termination Style | - |
| Lens Color | Colorless |
| Viewing Angle | 15° |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.25"" (6.35mm) |
| Wavelength - Peak | 468nm |
| Lens Transparency | Clear |
| Lamp Color | Blue |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
Request a Quote
Clients Also Buy
PM3RDW24
PNL MNT RED 20MA W/WIRE 24

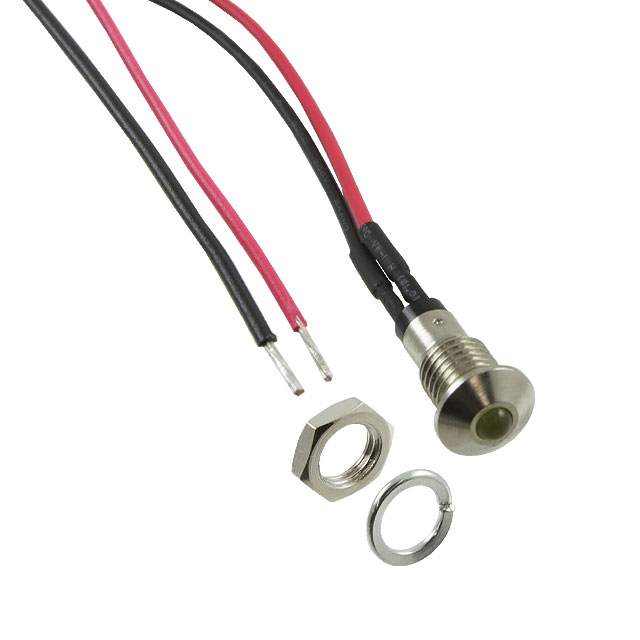

MPC3YDW12.0
