PM5GTW12.0
PNL MNT GREEN 20MA W/WIRE 12Manufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

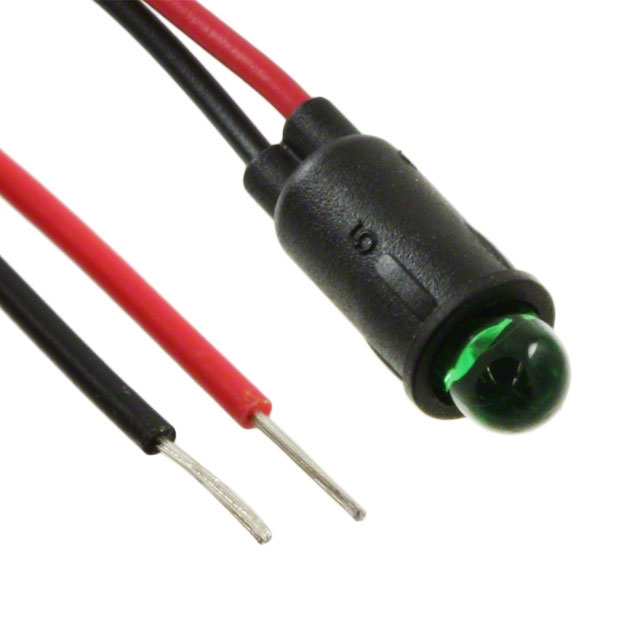

Bivar Inc. PM5GTW12-0 is a panel mount LED indicator from the PM5 series, featuring a green, clear lens with a domed top. This T-1 3/4 size indicator operates at a typical forward voltage of 2.1V and a maximum forward current of 30mA, providing a luminous intensity of 40mcd. The viewing angle is 35°, with a peak wavelength of 568nm. Termination is via 12-inch wire leads, and it requires a 0.25-inch round panel cutout. This component is suitable for applications in industrial automation and control systems, signage, and general equipment indication.
Additional Information
Series: PM5RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 30mA |
| Voltage | 2.1V |
| Type | LED |
| Millicandela Rating | 40mcd |
| Termination Style | Wire Leads - 12"" (304.80mm) |
| Lens Color | Green |
| Viewing Angle | 35° |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.25"" (6.35mm) |
| Wavelength - Peak | 568nm |
| Lens Transparency | Clear |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
Request a Quote
