PM5GT
PNL MNT W/ WIRE 568NM 40MCD GRNManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

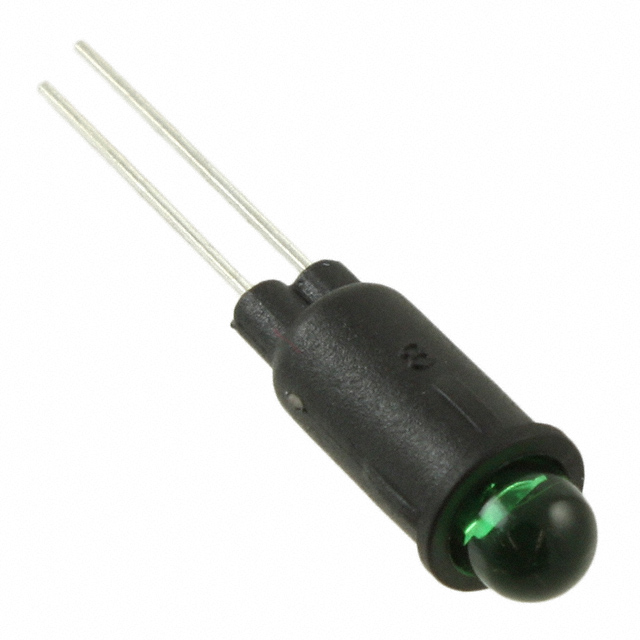

Bivar Inc. PM5 Series PM5GT is a 5mm (T-1 3/4) panel mount LED indicator with a green, clear, domed lens. This component features a typical forward voltage of 2.1V and a maximum forward current of 30mA, delivering a luminous intensity of 40mcd at a 35° viewing angle. The peak wavelength is 568nm. Designed for integration into panels with a standard 0.25" round cutout, this LED is commonly utilized in industrial control systems, instrumentation, and commercial equipment for status indication. The unit is supplied in tray packaging.
Additional Information
Series: PM5RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Current | 30mA |
| Voltage | 2.1V |
| Type | LED |
| Millicandela Rating | 40mcd |
| Termination Style | - |
| Lens Color | Green |
| Viewing Angle | 35° |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.25"" (6.35mm) |
| Wavelength - Peak | 568nm |
| Lens Transparency | Clear |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
