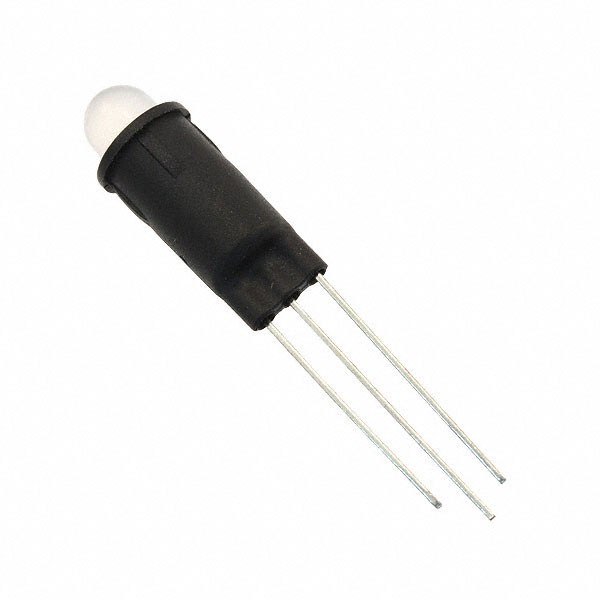

PM53-BC
INDICATOR LED RED/GREEN PNL MNTManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More
LED Panel Indicator Green, Red Diffused 40° 2.1V Green, 2V Red 30mA Green, 30mA Red
Additional Information
Series: PM53RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 30mA Green, 30mA Red |
| Voltage | 2.1V Green, 2V Red |
| Type | LED |
| Millicandela Rating | - |
| Termination Style | - |
| Lens Color | White |
| Viewing Angle | 40° |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.25"" (6.35mm) |
| Wavelength - Peak | 568nm Green, 625nm Red |
| Lens Transparency | Diffused |
| Lamp Color | Green, Red |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
Request a Quote
Clients Also Buy

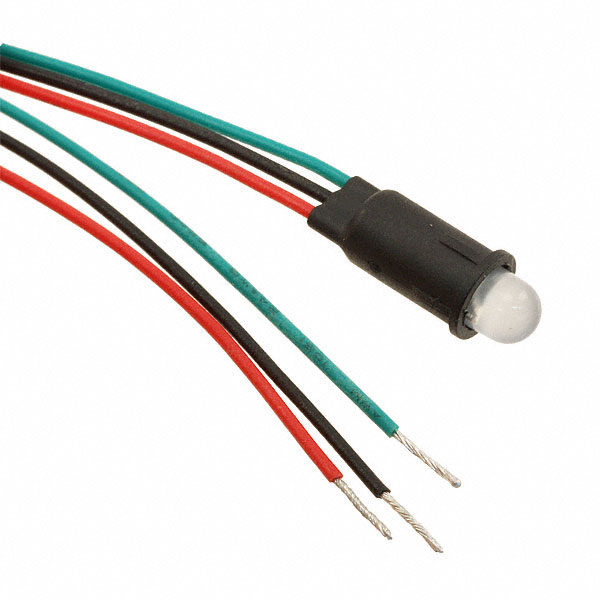

PM53-BCW10.0
PNL MNT GREEN, RED W/WIRE 10
PM53-BCW12.0
INDICATOR LED GREEN/RED PNL MNT

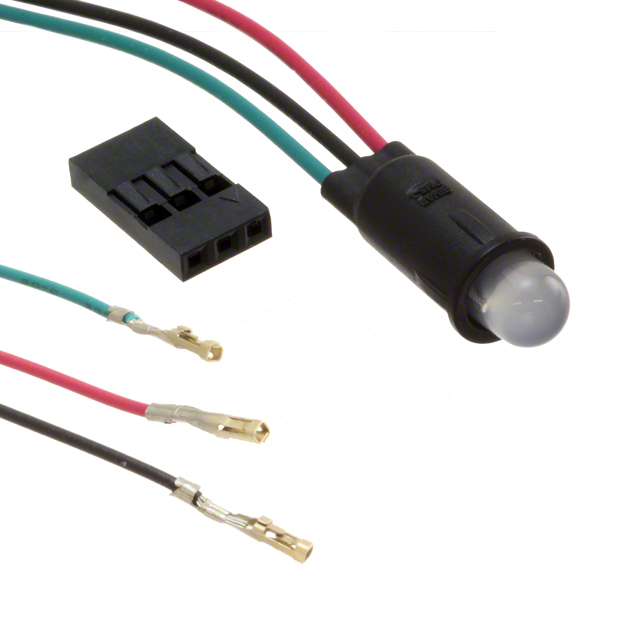

PM53-BCW12.0CC
