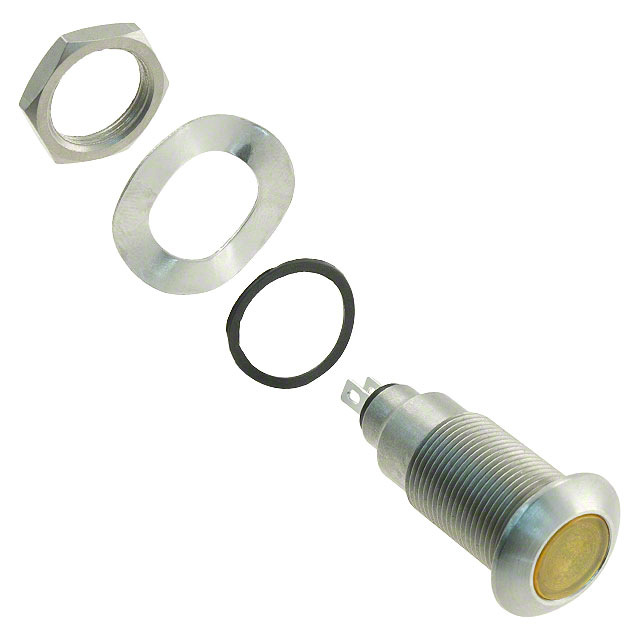

PM5-S17Y28V
PANEL MOUNT ASSEMBLY YLW 12.7MManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More
LED Panel Indicator Yellow Fresnel 120° 12V ~ 28V 20mA Quick Connect - 0.110"" (2.8mm)
Additional Information
Series: PM5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 12V ~ 28V |
| Type | LED |
| Millicandela Rating | 600mcd |
| Termination Style | Quick Connect - 0.110"" (2.8mm) |
| Lens Color | Yellow |
| Viewing Angle | 120° |
| Ingress Protection | IP67 |
| Ratings | AC/DC |
| Panel Cutout Dimensions | 0.50"" (12.70mm) |
| Wavelength - Peak | 585nm |
| Lens Transparency | Fresnel |
| Lamp Color | Yellow |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 10.20mm Dia |
