PM5-S17W110AC
PANEL MOUNT ASSEM WHITE, 12.7MMManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

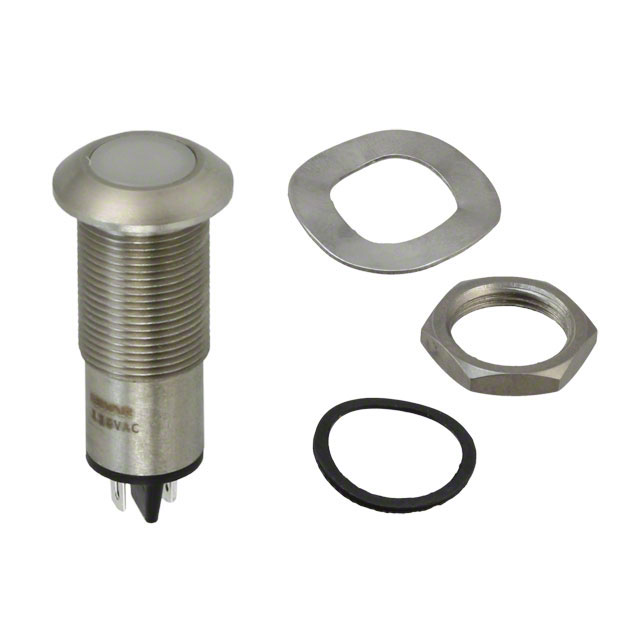

Bivar Inc. PM5 Series LED Panel Indicator, part number PM5-S17W110AC, is a robust solution for panel illumination. This component features a white Fresnel lens, providing a 120° viewing angle and a typical millicandela rating of 1200mcd for high visibility. Operating at 110V AC with a 20mA current draw, it utilizes a 0.110" (2.8mm) quick connect termination for efficient installation. The panel cutout is a standard 0.50" (12.70mm) round. Designed for durability, it offers IP67 ingress protection. This indicator is commonly employed in industrial automation, control panels, and safety equipment where reliable visual feedback is critical.
Additional Information
Series: PM5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 110V |
| Type | LED |
| Millicandela Rating | 1200mcd |
| Termination Style | Quick Connect - 0.110"" (2.8mm) |
| Lens Color | White |
| Viewing Angle | 120° |
| Ingress Protection | IP67 |
| Ratings | AC |
| Panel Cutout Dimensions | 0.50"" (12.70mm) |
| Wavelength - Peak | - |
| Lens Transparency | Fresnel |
| Lamp Color | White |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 10.20mm Dia |
Request a Quote
