PM5-S17R110AC
PANEL MOUNT ASSEMBLY RED, 12.7MMManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

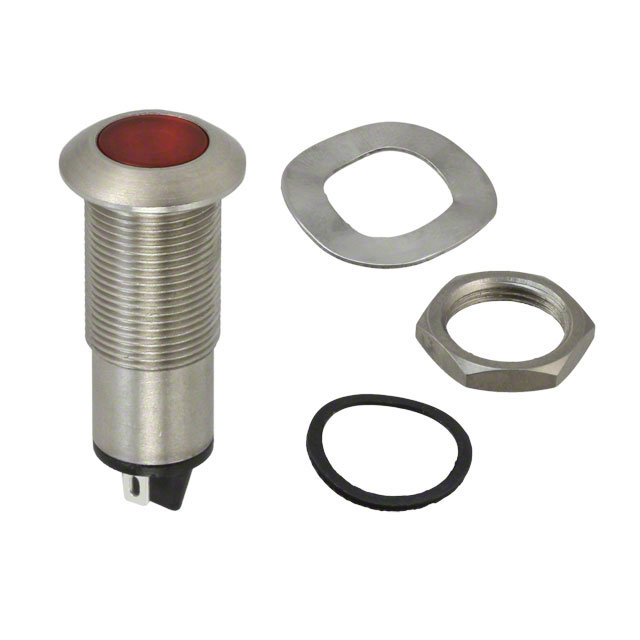

Bivar Inc. PM5 Series LED panel indicator, part number PM5-S17R110AC, offers a bright red Fresnel lens with a 120° viewing angle. This panel mount assembly features a 12.7mm (0.50") round cutout and a 10.20mm diameter lens. Designed for AC operation up to 100V, it draws a typical current of 20mA and achieves a millicandela rating of 600mcd at a peak wavelength of 630nm. The unit utilizes 0.110" (2.8mm) quick connect terminations for efficient installation. Its IP67 rating ensures robust performance in demanding environments. This component is commonly utilized in industrial control panels, medical equipment, and general instrumentation applications.
Additional Information
Series: PM5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 100V |
| Type | LED |
| Millicandela Rating | 600mcd |
| Termination Style | Quick Connect - 0.110"" (2.8mm) |
| Lens Color | Red |
| Viewing Angle | 120° |
| Ingress Protection | IP67 |
| Ratings | AC |
| Panel Cutout Dimensions | 0.50"" (12.70mm) |
| Wavelength - Peak | 630nm |
| Lens Transparency | Fresnel |
| Lamp Color | Red |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 10.20mm Dia |
