PM5-S17G110AC
PANEL MOUNT ASSEM GREEN, 12.7MMManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

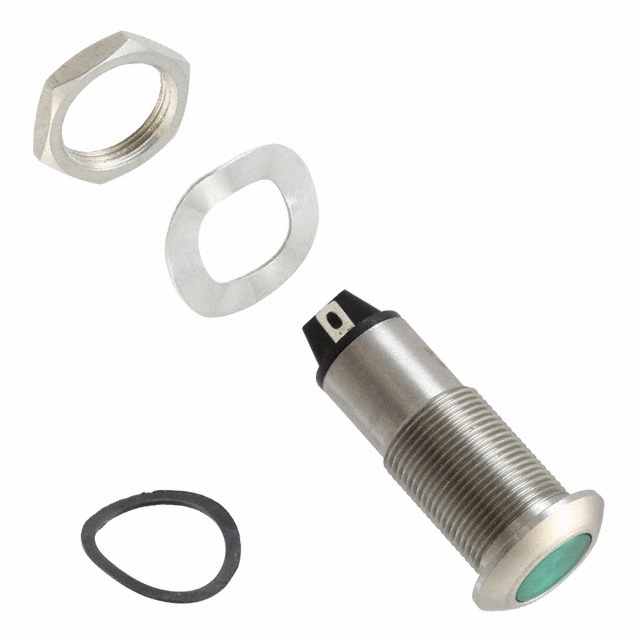

Bivar Inc. PM5 Series LED Panel Indicator, part number PM5-S17G110AC, offers a robust solution for panel illumination. This green LED indicator features a 120° viewing angle and a Fresnel lens for enhanced light diffusion, with a millicandela rating of 800mcd at a peak wavelength of 515nm. Designed for panel mounting with a 0.50" (12.70mm) cutout, it utilizes a 0.110" (2.8mm) quick connect termination. The unit is rated for 100V AC and operates at 20mA. Its IP67 ingress protection rating ensures durability in demanding environments. Applications include industrial control panels, power distribution units, and equipment status indication across various industrial sectors.
Additional Information
Series: PM5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 100V |
| Type | LED |
| Millicandela Rating | 800mcd |
| Termination Style | Quick Connect - 0.110"" (2.8mm) |
| Lens Color | Green |
| Viewing Angle | 120° |
| Ingress Protection | IP67 |
| Ratings | AC |
| Panel Cutout Dimensions | 0.50"" (12.70mm) |
| Wavelength - Peak | 515nm |
| Lens Transparency | Fresnel |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 10.20mm Dia |
