PM5-PPGDW12.0
PNL MNT W/ WIRE 555NM 10MCD GRNManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

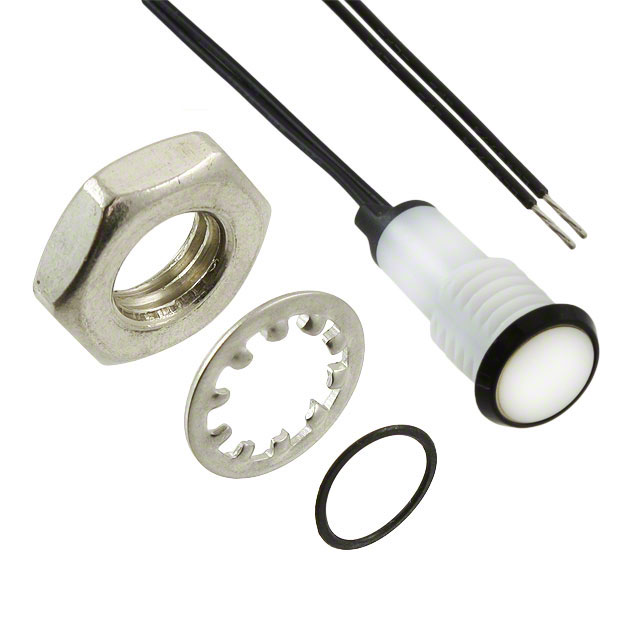

The Bivar Inc. PM5-PPGDW12-0 is a panel-mount LED indicator from the PM5 series, featuring a diffused white lens with a 9.70mm diameter and a round, flat-top style. This component provides a 120° viewing angle and emits a 555nm green light with a typical millicandela rating of 10mcd. Designed for robust operation, it offers an 8V to 48V AC/DC voltage rating and a 20mA current draw. The indicator is equipped with 12-inch wire leads for termination and boasts IP67 ingress protection, making it suitable for applications in industrial automation, control systems, and general equipment indication where durability and clear visual feedback are critical. The panel cutout required is round, 0.39 inches (9.91mm) in diameter.
Additional Information
Series: PM5RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 8V ~ 48V |
| Type | LED |
| Millicandela Rating | 10mcd |
| Termination Style | Wire Leads - 12"" (304.80mm) |
| Lens Color | White |
| Viewing Angle | 120° |
| Ingress Protection | IP67 |
| Ratings | AC/DC |
| Panel Cutout Dimensions | 0.39"" (9.91mm) |
| Wavelength - Peak | 555nm |
| Lens Transparency | Diffused |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 9.70mm Dia |
