PM5-PGDW12.0
PNL MNT W/ WIRE 568NM 25MCD GRNManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

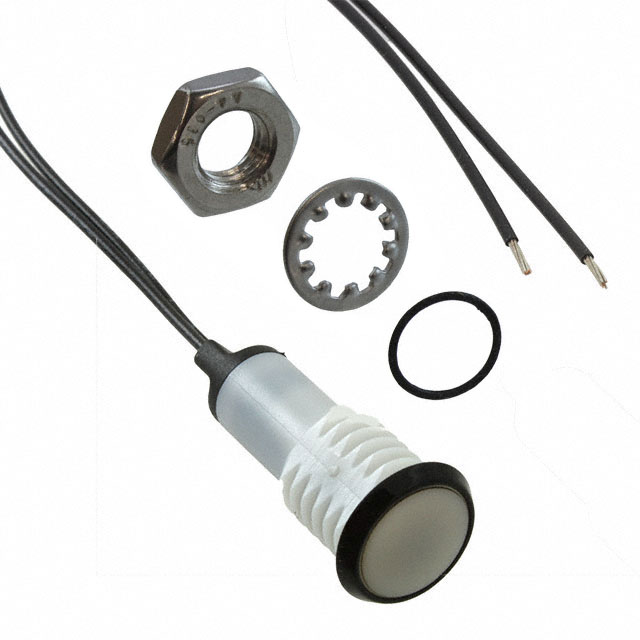

Bivar Inc. PM5 series LED panel indicator, part number PM5-PGDW12-0. This diffused green LED features a 120° viewing angle and a peak wavelength of 568nm, providing a millicandela rating of 30mcd. Designed for panel mounting with a 0.39" (9.91mm) round cutout, it offers a broad operating voltage range of 8V to 48V AC/DC. The unit is terminated with 12" (304.80mm) wire leads for flexible integration. With an IP67 ingress protection rating, this component is suitable for demanding industrial environments, including automation and control systems. The diffused lens ensures uniform light distribution.
Additional Information
Series: PM5RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 8V ~ 48V |
| Type | LED |
| Millicandela Rating | 30mcd |
| Termination Style | Wire Leads - 12"" (304.80mm) |
| Lens Color | White |
| Viewing Angle | 120° |
| Ingress Protection | IP67 |
| Ratings | AC/DC |
| Panel Cutout Dimensions | 0.39"" (9.91mm) |
| Wavelength - Peak | 568nm |
| Lens Transparency | Diffused |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 9.70mm Dia |
