PM5-KYDW12.0
LED PANEL INDICATOR YLW 2VManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

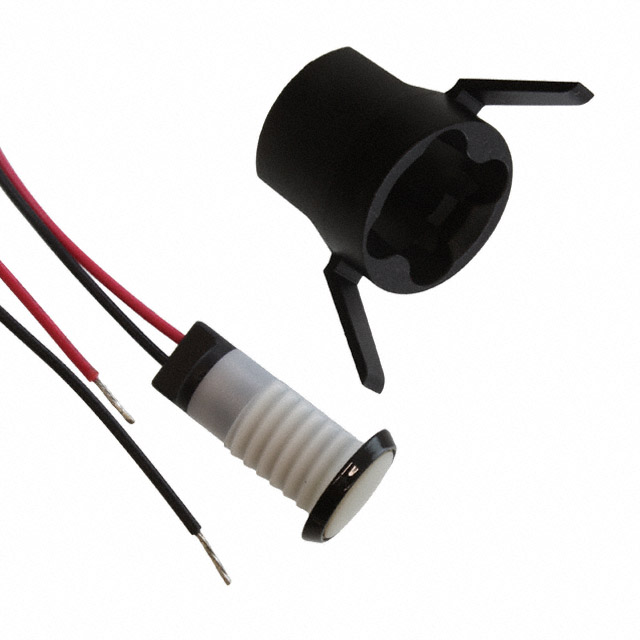

Bivar Inc. PM5 Series LED Panel Indicator, part number PM5-KYDW12-0, features a yellow diffused lens with a 120° viewing angle. This component is designed for panel mounting with a 0.39-inch round cutout and terminates in 12-inch wire leads. The LED operates with a typical forward voltage of 2V and a maximum forward current of 20mA, providing a typical luminous intensity of 300mcd at a peak wavelength of 590nm. This indicator is suitable for applications in industrial automation, control panels, and test equipment where reliable visual feedback is critical.
Additional Information
Series: PM5RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 2V |
| Type | LED |
| Millicandela Rating | 300mcd |
| Termination Style | Wire Leads - 12"" (304.80mm) |
| Lens Color | White |
| Viewing Angle | 120° |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.39"" (9.91mm) |
| Wavelength - Peak | 590nm |
| Lens Transparency | Diffused |
| Lamp Color | Yellow |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 9.70mm Dia |
