PM5-KYD
PNL MNT 590NM 300MCD 2V YLWManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

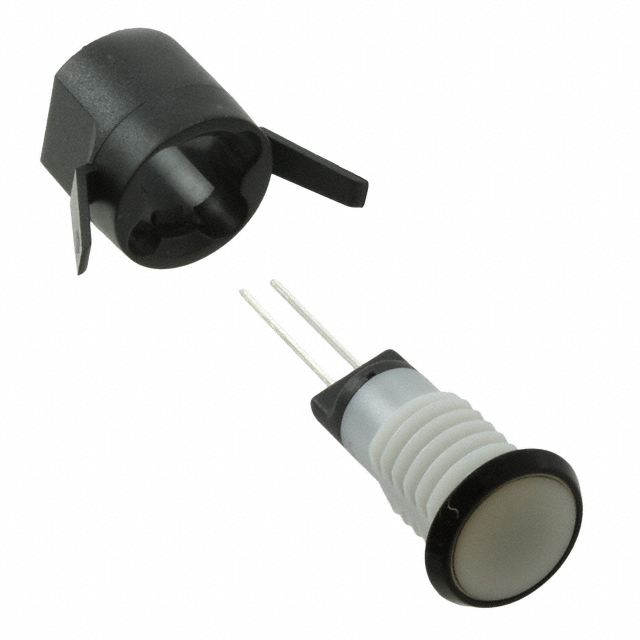

Bivar Inc. PM5 Series LED Panel Indicator, part number PM5-KYD, features a 590nm yellow diffused lens with a 120° viewing angle. This component operates at a typical forward voltage of 2V and a maximum continuous forward current of 20mA, delivering a luminous intensity of 300mcd. Designed for panel mounting with a 0.39" (9.91mm) round cutout, it utilizes a white lens color for optimal light diffusion. This indicator is suitable for applications in industrial control, instrumentation, and general signaling equipment where reliable visual feedback is essential.
Additional Information
Series: PM5RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 2V |
| Type | LED |
| Millicandela Rating | 300mcd |
| Termination Style | - |
| Lens Color | White |
| Viewing Angle | 120° |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.39"" (9.91mm) |
| Wavelength - Peak | 590nm |
| Lens Transparency | Diffused |
| Lamp Color | Yellow |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 9.70mm Dia |
