PM5-KRDW12.0
LED PANEL INDICATOR RED 1.7VManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

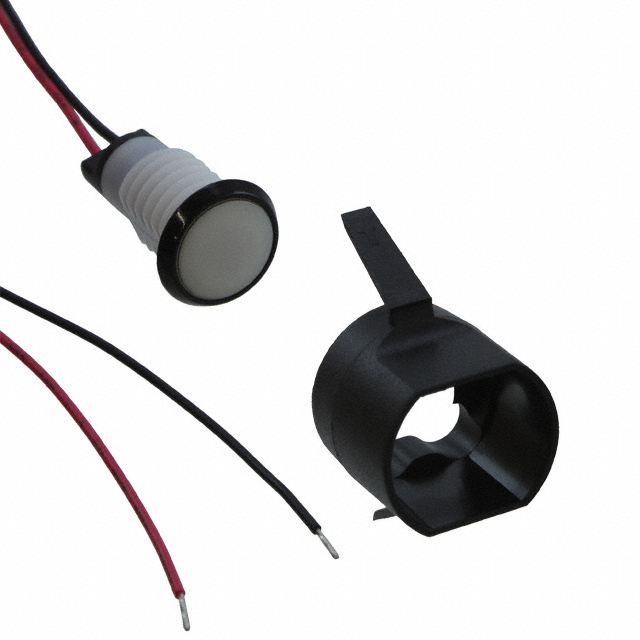

The Bivar Inc. PM5-KRDW12-0 is a panel-mount LED indicator designed for clear visual signaling. This component features a diffused red LED with a typical forward voltage (Vf) of 1.7V and a maximum forward current (If) of 20mA, delivering a typical luminous intensity of 40 millicandela at its peak wavelength of 645nm. The 120° viewing angle ensures broad visibility. It is housed within a white, round lens with a flat top, measuring 9.70mm in diameter, and requires a 0.39-inch (9.91mm) round panel cutout. Termination is via 12-inch (304.80mm) wire leads for straightforward integration into various electronic assemblies and control panels. This indicator is commonly utilized in industrial automation, control systems, and general equipment status indication.
Additional Information
Series: PM5RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 1.7V |
| Type | LED |
| Millicandela Rating | 40mcd |
| Termination Style | Wire Leads - 12"" (304.80mm) |
| Lens Color | White |
| Viewing Angle | 120° |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.39"" (9.91mm) |
| Wavelength - Peak | 645nm |
| Lens Transparency | Diffused |
| Lamp Color | Red |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 9.70mm Dia |
