PM5-B5Y28V
PANEL MOUNT ASSEM 5MM YELLOWManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

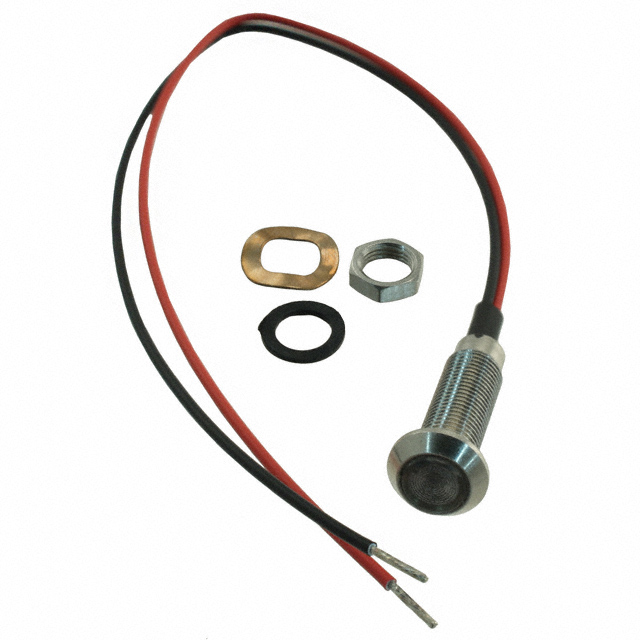

The Bivar Inc. PM5 series PM5-B5Y28V is a panel mount LED indicator assembly designed for robust environmental performance. Featuring a 5mm yellow Fresnel lens with a 120° viewing angle, this component provides a 585nm peak wavelength illumination with an 87mcd intensity at 20mA. The unit operates within a voltage range of 24V to 28V DC and is equipped with 5.9-inch wire leads for termination. Its IP67 rating ensures protection against dust and temporary immersion in water, making it suitable for industrial control panels, automation equipment, and outdoor signage applications where reliability is critical. The assembly is designed for a 0.20-inch round panel cutout.
Additional Information
Series: PM5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 24V ~ 28V |
| Type | LED |
| Millicandela Rating | 87mcd |
| Termination Style | Wire Leads - 5.9"" (150.00mm) |
| Lens Color | Yellow |
| Viewing Angle | 120° |
| Ingress Protection | IP67 |
| Ratings | DC |
| Panel Cutout Dimensions | 0.20"" (5.08mm) |
| Wavelength - Peak | 585nm |
| Lens Transparency | Fresnel |
| Lamp Color | Yellow |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 5.10mm Dia |
