PM5-B5W28V
PANEL MOUNT ASSEMBLY WHITE, 5MMManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

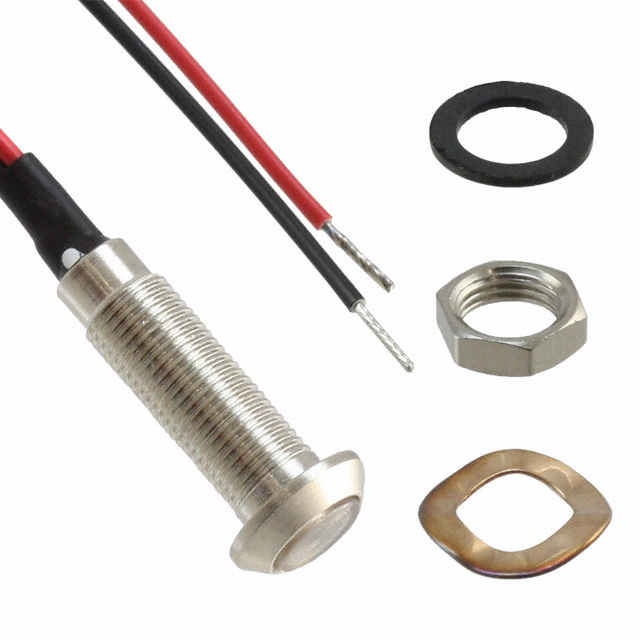

The Bivar Inc. PM5-B5W28V is a panel mount LED indicator designed for robust industrial applications. This component, part of the PM5 series, features a white Fresnel lens for diffused illumination and a 120° viewing angle. It operates within a voltage range of 24V to 28V AC/DC, drawing a current of 20mA, and offers a typical millicandela rating of 414mcd. The unit is equipped with 5.9" wire leads for termination and has an IP67 ingress protection rating, making it suitable for environments requiring protection against dust and water. The panel cutout is a standard 0.20" (5.08mm) round aperture. This indicator is commonly utilized in control panels, industrial automation, and heavy equipment where reliable visual status indication is critical.
Additional Information
Series: PM5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 24V ~ 28V |
| Type | LED |
| Millicandela Rating | 414mcd |
| Termination Style | Wire Leads - 5.9"" (150.00mm) |
| Lens Color | White |
| Viewing Angle | 120° |
| Ingress Protection | IP67 |
| Ratings | AC/DC |
| Panel Cutout Dimensions | 0.20"" (5.08mm) |
| Wavelength - Peak | - |
| Lens Transparency | Fresnel |
| Lamp Color | White |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 5.10mm Dia |
