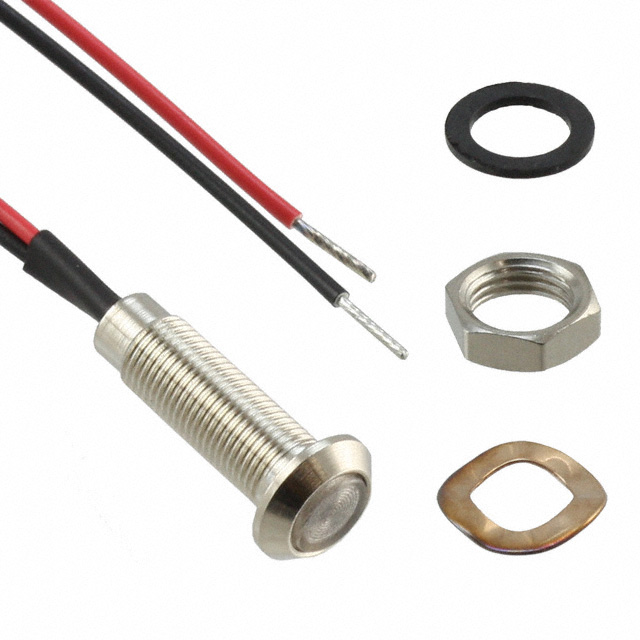

PM5-B5G28V
PANEL MOUNT ASSEM 5MM GREENManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More
Bivar Inc. PM5 series panel mount LED indicator, part number PM5-B5G28V, provides clear visual feedback for demanding applications. This unit features a 5mm green Fresnel lens with a 120° viewing angle, emitting 576mcd at its peak wavelength of 525nm. Designed for reliable operation, it accepts a voltage range of 24V to 28V at a nominal current of 20mA. The IP67 rated assembly includes 5.9" (150mm) wire leads for flexible termination and is suitable for panel cutouts of 0.20" (5.08mm). This component is commonly utilized in industrial automation, control panels, and test equipment where robust and visible status indication is critical.
Additional Information
Series: PM5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 24V ~ 28V |
| Type | LED |
| Millicandela Rating | 576mcd |
| Termination Style | Wire Leads - 5.9"" (150.00mm) |
| Lens Color | Green |
| Viewing Angle | 120° |
| Ingress Protection | IP67 |
| Ratings | DC |
| Panel Cutout Dimensions | 0.20"" (5.08mm) |
| Wavelength - Peak | 525nm |
| Lens Transparency | Fresnel |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 5.10mm Dia |
