PM5-B5B28V
PANEL MOUNT ASSEMBLY BLUE, 5MMManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

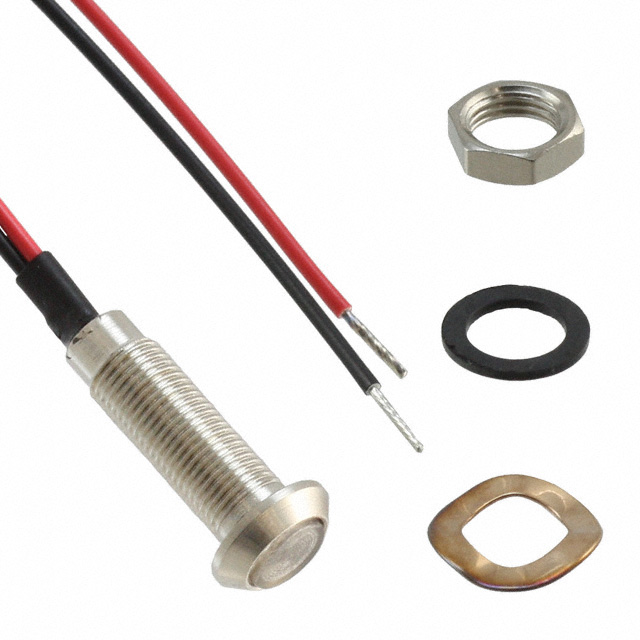

Bivar Inc. PM5 Series panel mount assembly, part number PM5-B5B28V, is designed for robust indicator applications. This unit features a 5mm Blue Fresnel lens providing a 120° viewing angle with a typical millicandela rating of 128mcd at a peak wavelength of 470nm. It operates within a voltage range of 24V to 28V DC at a 20mA current draw. The assembly is built for panel mounting with a 0.20" (5.08mm) round cutout and offers IP67 ingress protection. Termination is provided via 5.9" (150.00mm) wire leads. This component is suitable for industrial automation, control panels, and equipment status indication across various manufacturing environments.
Additional Information
Series: PM5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 24V ~ 28V |
| Type | LED |
| Millicandela Rating | 128mcd |
| Termination Style | Wire Leads - 5.9"" (150.00mm) |
| Lens Color | Blue |
| Viewing Angle | 120° |
| Ingress Protection | IP67 |
| Ratings | DC |
| Panel Cutout Dimensions | 0.20"" (5.08mm) |
| Wavelength - Peak | 470nm |
| Lens Transparency | Fresnel |
| Lamp Color | Blue |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 5.10mm Dia |
