PM5-AP7Y2.0V
PANEL MOUNT ASSEM YELLOW, 8.5MMManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

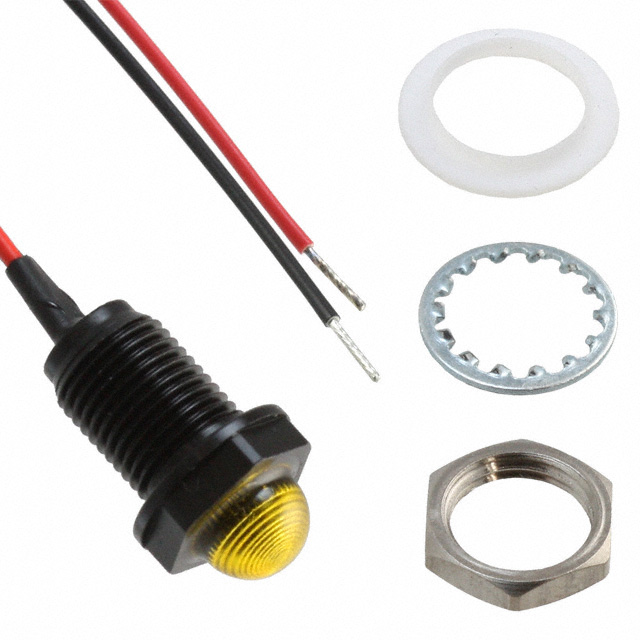

Bivar Inc. PM5 series LED panel indicator, part number PM5-AP7Y2-0V. This component features a yellow diffused lens with a 160° viewing angle, designed for panel mounting with a 0.34" (8.64mm) cutout. It utilizes a yellow LED with a peak wavelength of 585nm, providing a typical forward voltage of 2V and a maximum forward current of 20mA, achieving a millicandela rating of 600mcd. The unit is equipped with 5.9" (150.00mm) wire leads for termination and offers IP67 ingress protection. This robust indicator is suitable for applications in industrial automation, control panels, and equipment status indication.
Additional Information
Series: PM5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 2V |
| Type | LED |
| Millicandela Rating | 600mcd |
| Termination Style | Wire Leads - 5.9"" (150.00mm) |
| Lens Color | Yellow |
| Viewing Angle | 160° |
| Ingress Protection | IP67 |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.34"" (8.64mm) |
| Wavelength - Peak | 585nm |
| Lens Transparency | Diffused |
| Lamp Color | Yellow |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 7.00mm Dia |
