PM5-AP7R2.0V
PANEL MOUNT ASSEMBLY RED, 8.5MMManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

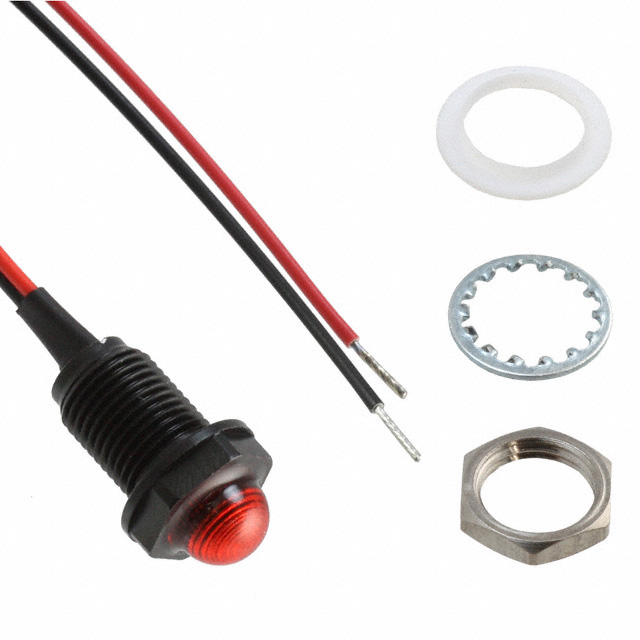

Bivar Inc. PM5 Series LED Panel Indicator, Part Number PM5-AP7R2-0V. This panel mount assembly features a red diffused lens with an 8.5mm panel cutout diameter, designed for applications requiring robust visual feedback. The component offers a 160° viewing angle and a typical forward voltage of 2V at a maximum forward current of 20mA, producing a millicandela rating of 600mcd at a peak wavelength of 630nm. Termination is provided via 5.9" (150mm) wire leads. With an IP67 ingress protection rating, this indicator is suitable for use in harsh environments across industrial automation, control systems, and medical equipment sectors.
Additional Information
Series: PM5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 2V |
| Type | LED |
| Millicandela Rating | 600mcd |
| Termination Style | Wire Leads - 5.9"" (150.00mm) |
| Lens Color | Red |
| Viewing Angle | 160° |
| Ingress Protection | IP67 |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.34"" (8.64mm) |
| Wavelength - Peak | 630nm |
| Lens Transparency | Diffused |
| Lamp Color | Red |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 7.00mm Dia |
