PM5-AP7G3.4V
PANEL MOUNT ASSEM GREEN, 8.5MMManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

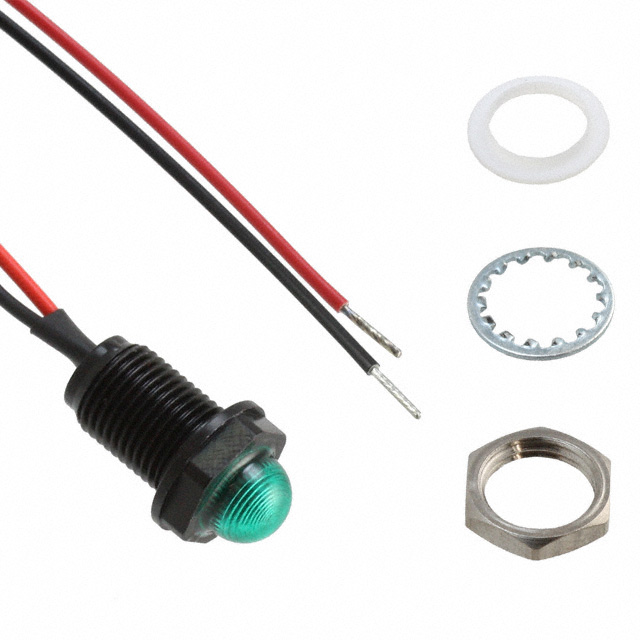

Bivar Inc. PM5 series LED panel indicator, part number PM5-AP7G3-4V, features a green diffused lens with a 160° viewing angle, providing optimal visibility. This component operates at a typical forward voltage (Vf) of 3.4V and a maximum forward current (If) of 20mA, delivering a millicandela rating of 800mcd at its peak wavelength of 515nm. Designed for panel mounting with a standard 0.34" (8.64mm) round cutout, it includes 5.9" (150.00mm) wire leads for termination. The PM5-AP7G3-4V offers IP67 ingress protection, ensuring robust performance in challenging environments. This indicator finds application in industrial automation, control panels, and general equipment status indication.
Additional Information
Series: PM5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 3.4V |
| Type | LED |
| Millicandela Rating | 800mcd |
| Termination Style | Wire Leads - 5.9"" (150.00mm) |
| Lens Color | Green |
| Viewing Angle | 160° |
| Ingress Protection | IP67 |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.34"" (8.64mm) |
| Wavelength - Peak | 515nm |
| Lens Transparency | Diffused |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 7.00mm Dia |
