PM5-AP7B3.4V
PANEL MOUNT ASSEMBLY BLUE, 8.5MMManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

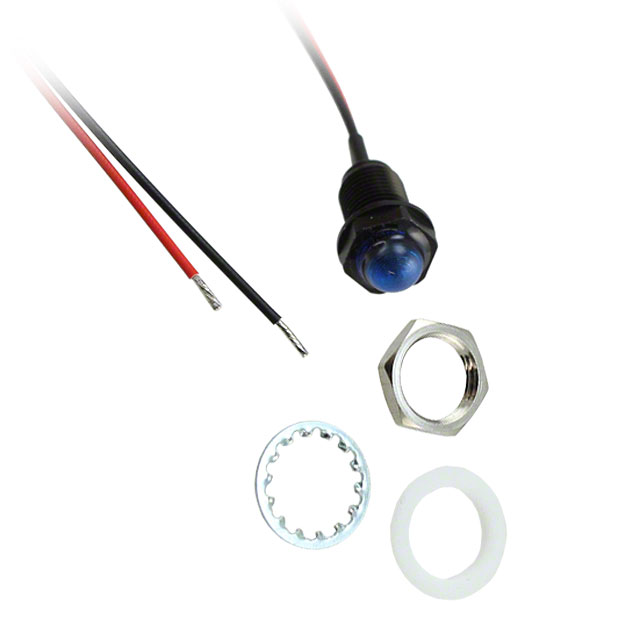

Bivar Inc. PM5 Series LED Panel Indicator, Part Number PM5-AP7B3-4V, presents a blue diffused LED with a 160° viewing angle, suitable for panel mounting applications requiring reliable visual feedback. This component features a 3.4V forward voltage and a typical 20mA operating current, delivering 400mcd luminous intensity at a peak wavelength of 465nm. The assembly includes wire leads with a 5.9" (150.00mm) length for straightforward integration. Designed for a 0.34" (8.64mm) round panel cutout, the indicator offers IP67 ingress protection, making it robust for use in industrial automation, control panels, and medical equipment where durability and clear status indication are critical. The 7.00mm diameter diffused lens ensures uniform light distribution.
Additional Information
Series: PM5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 3.4V |
| Type | LED |
| Millicandela Rating | 400mcd |
| Termination Style | Wire Leads - 5.9"" (150.00mm) |
| Lens Color | Blue |
| Viewing Angle | 160° |
| Ingress Protection | IP67 |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.34"" (8.64mm) |
| Wavelength - Peak | 465nm |
| Lens Transparency | Diffused |
| Lamp Color | Blue |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 7.00mm Dia |
